Coated Color Galvanized Steel Sheet Coil Dx51d Dx52d Hot Dipped

Place of Origin China
Brand Name TONGMAO
Certification ISO9001 MTC
Model Number Galvanized Steel Coils
Minimum Order Quantity 5tons
Price Negotiable
Packaging Details Standard Packing
Delivery Time 7-15days
Payment Terms L/C, T/T
Supply Ability 500tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness 0.12-0.2 Zinc Coating Z181-Z275
Spangle Type Regular , Minimmal , Zero ,Big Spangle Grade SGCC/CGCC/DX51D
Color Custom Color No. Technique Cold Rolled/Hot Dipped
High Light

Coated Color Galvanized Steel Sheet Coil

,

Dx52d Galvanized Steel Sheet Coil

,

0.2mm Galvanized Steel Sheet Coil

Leave a Message
Product Description

Coated Color Dx51d/Dx52d Cold Rolled/Hot Dipped Galvanized Steel Sheet Coil




Cold Rolled Substrate Color Coated Steel Plate



The color plate produced from the cold-rolled substrate has a smooth and beautiful appearance and has the processability of cold-rolled plate; however, any small scratches in the surface coating will expose the cold-rolled substrate to the air, which will quickly expose the iron to the Generates red rust. Therefore, such products can only be used for temporary isolation measures and interior materials with low requirements.



Hot-dip galvanized color coated steel sheet



The product obtained by coating the organic coating on the hot-dip galvanized steel sheet is the hot-dip galvanized color-coated sheet. In addition to the protection of zinc, the organic coating on the surface of the hot-dip galvanized color-coated sheet also plays the role of insulation and protection, preventing rust, and the service life is longer than that of the hot-dip galvanized sheet. The zinc content of the hot-dip galvanized substrate is generally 180g/m2 (double-sided), and the maximum zinc content of the hot-dip galvanized substrate for building exterior is 275g/m2.



Hot-dip galvanized color-coated sheet



On request, hot-dip galvanized steel sheets can also be used as color-coated substrates (55% AI-Zn and 5% AI-Zn).



Electro-galvanized color-coated sheet



The electro-galvanized sheet is used as the substrate, and the product obtained by coating the organic paint and baking is the electro-galvanized color-coated sheet. Because the zinc layer of the electro-galvanized sheet is thin, the zinc content of the electro-galvanized sheet is usually 20/20g/m2, so this product is not suitable for use. Make walls, roofs, etc. outdoors. But because of its beautiful appearance and excellent processing performance, it can be mainly used in home appliances, audio, steel furniture, interior decoration, etc.

Standard
ISO,JIS,AS EN,ASTM
Grade
Q195 Q235 Q345
SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570
SGHC SGH340 SGH400 SGH440 SGH490 SGH540
DX51D DX52D DX53D DX54D DX55D DX56D DX57D
S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD
SS230 SS250 SS275
Width
20mm to 1500mm
Thickness
0.125mm to 3.5mm
Zinc coating
40g/m2 to 275g/m2
Coil weight
3 tons to 6 tons
Coil ID
508mm or 610mm
Surface treatment
Unoil,Dry,Chromate Passivated, Non-chromate Passivated
Spangle
Regular Spangle, minimum Spangle,Large Spangle, Zero Spangle
Capacity
1,500,000MT/year
Delivery
15-25 Days
Spangle
Big Medium Small Zero
Zinc Coating
30-275g/m2

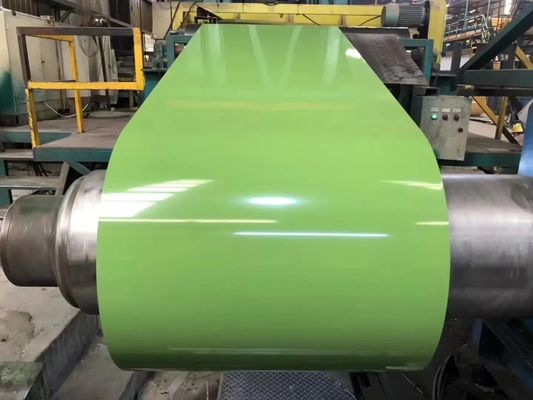

Coated Color Galvanized Steel Sheet Coil Dx51d Dx52d Hot Dipped 0

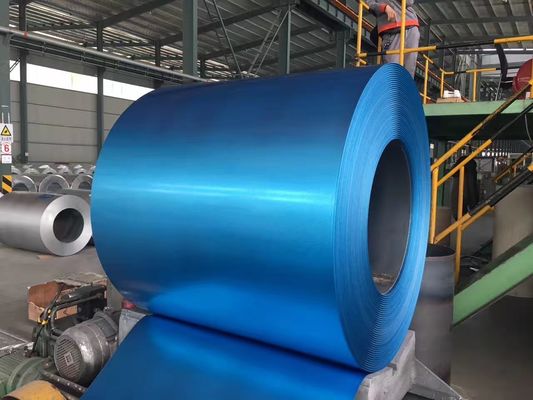

Coated Color Galvanized Steel Sheet Coil Dx51d Dx52d Hot Dipped 1
