275g/M2 Zinc Coated Galvanized Steel Sheet In Coil SGCD1 SGCD2 SGC340 SGC400
Place of Origin | China |
---|---|
Brand Name | Tongmao |
Certification | ISO9001 MTC |
Model Number | Galvanized Steel Coil |
Minimum Order Quantity | 3 TONS |
Price | Negotiable |
Packaging Details | Sea Worth Packaging or Client's Request |
Delivery Time | 5-8 Working Days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 500 TONS - 1 Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWidth | 600mm-1250mm | Standard | ASTM, JIS, AISI, GB, EN |
---|---|---|---|
Length | 1000mm ~ 6000mm | Grade | SGSS/SGCD1/SGCD2/SGCD3/SGC340,400,440,490,570/ CS TypeA,B,C/FS TypeA/FS TypeB/DDS TypeA,C/EDDS/DX51D+Z |
Zinc Coating | 30-275g/m2 | Application | Roofing, Decor, Flange Plate, Commercial Use, Forming |
High Light | SGC340 galvanized steel sheet in coil,SGC400 galvanized steel sheet in coil,275g/m2 zinc coated steel strip |
Factory Direct SGSS/SGCD1/SGCD2/SGCD3/SGC340, 400 Galvanized Steel Coil
Hot Dipped Cold Rolled Dx51d Z275 2 Mm Zinc Coated Steel Strip In Coil
It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in the zinc melting bath to make galvanized steel plate. Galvanized coil has good coating adhesion, weldability and corrosion resistance. It is mainly used for cold working
Product description
Standard | JIS G3302 / ASTM A653M / EN10327 / DIN17162 |
Grade |
SGSS/SGCD1/SGCD2/SGCD3/SGC340,400,440,490,570/ CS TypeA,B,C/FS TypeA/FS TypeB/DDS TypeA,C/EDDS/DX51D+Z |
Thickness | 0.12-1.2 mm |
Width | 600-1250mm |
(usual size:914mm,1000mm,1200mm,1219mm,1250mm,1220mm) | |
Coil ID | 508mm, 610mm |
Color weight | 4-6 tons |
Packing | Standard seaworthy export packing: waterproof paper+steel trip |
packed+wooden case seaworthy package | |
Delivery | Within 20-25 days |
Price | FOB&CNF&CIF price |
Payment terms | TT or L/C |
Application: | Galvanized steel is available in a variety of forms, such as galvanized pipes and galvanized wire. It is used everywhere. |
Galvanized steel frames are used to build houses. | |
Car parts are made out of galvanized steel, for example, the body of trucks and buses. | |
Galvanized metal has found its way into several household appliances such as washing machines, air conditioning housings, hair dryers, etc. | |
It is used in high tension electrical towers, protective gears, highway signs etc. | |
It is also used to make wrought iron gates and other items. | |
Also used to make metal pails. |

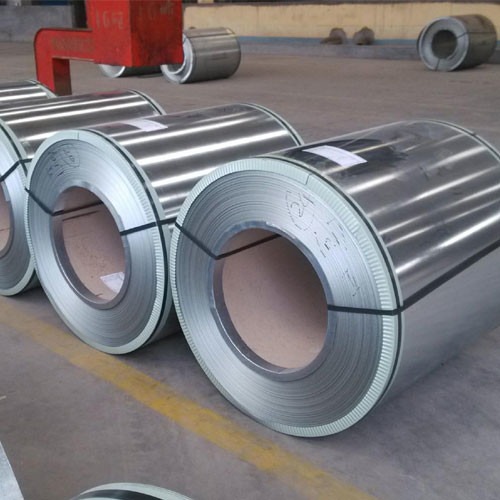

Detailed photos
Product parameters
Type-01:Hot dipped Galvanized Steel Coil
Substrate | Cold Rolled Steel Coil |
Steel Grade | DX51D+Z~DX56D+Z,DC51D,Q195,Q235,Q235A,ST02Z,CS-B,etc |
Standard | JIS G3302-2007, GB/T2518-2008,ST02Z, DIN EN 10327, ASTM A653 |
Thickness | 0.14mm~1.0mm |
Width | 600mm~1250mm |
Zinc Coating | Z40~Z60/ Z80~Z100/ Z120~Z150/ Z275 |
Spangle | regular spangle, minimum spangle |
Edge | mill edge,cut edge |
Surface Treatment | Chromated,Oiled,Anti-finger print (N) |
Type-02:Electrogalvanized Steel coil
Substrate | Cold Rolled Steel Coil |
Steel Grade | DC01+ZE, SECCN5, CR4, ZStE180BH+ZE,etc |
Standard | JIS G3302-2007, GB/T2518-2008,DIN EN 10327, ASTM A653 |
Thickness | 0.14mm~1.0mm |
Width | 600mm~1250mm |
Zinc Coating | E8,E16,E24,E32 |
Edge | mill edge,cut edge |
Surface Treatment | Oiled,Phosphate (P),Anti-finger print (N) |
Type-03:Hot dipped Galvalume Steel Coil
Substrate | Cold Rolled Steel Coil |
Thickness | 0.14mm~2.0mm |
Width | 600mm~1250mm |
Spangle | Regular, Zero |
Treatment | Skin-passed,Chromated,AFP,Oiled |
Quality | CQ,DQ,HSLA |
