Nickel ASTM C7060 Seamless Copper Pipe Nickle Brass Tubes For Air Condition

  • Nickel ASTM C7060 Seamless Copper Pipe Nickle Brass Tubes For Air Condition
  • Nickel ASTM C7060 Seamless Copper Pipe Nickle Brass Tubes For Air Condition
  • Nickel ASTM C7060 Seamless Copper Pipe Nickle Brass Tubes For Air Condition
Place of Origin China
Brand Name Tongmao
Certification ISO9001, MTC
Model Number Soft red copper tube
Minimum Order Quantity 500KGS
Price Negotiable
Packaging Details Coil with plastic in carton packing
Delivery Time 7-15days
Payment Terms T/T, L/C
Supply Ability 500TONS ONE MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper Nickel Alloy Pipe Cu (min) 99.99%,
Application Air Condition Or Refrigerator, Water Heater, Aircon Systems, Oil Cooler Pipe, Refrigeration Parts Outside Diameter 0.5mm-30mm Or As Customer 's
Color Red Wall Thickness 0.2mm-120mm Or As Customer 's
Material H62 C27200 C27000 Length As Customer 's
High Light

Seamless Nickle Brass Pipe Tube

,

C7060 Seamless Copper Pipe

,

Seamless Copper Nickle Tubes
Leave a Message
Product Description

Nickel ASTM B111 C7060 O C71500 Big Seamless Copper Nickle 90 10 90 30 Brass Tubes For Air Condition



Item
Brass pipe Brass tube
Standard
GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395,ASTM B587,etc
Material
Brass:C21000,C22000,C22600,C23000,C24000,C26000,C26130,C26800,C27000,C27200,C27400,C28000,etc
Leaded brass:C31400,C31600,C32000,C33000,C33200,C33500,C34000,C34200,
C34500,C35000,C35300,C35600,C36000,C36500,C37000,C37700,C38000,
C38500,etc
Tin brass:C40500,C40800,C41100,C42200,C44400,C48200,C46400,C46200,etc
Aluminium bronze:C60600,C62300,C62400,C63000,C63200,C64200,etc
Nickel copper:C71000,C71500,C70400,C70600,C70250,C70260,C71520,C72200,
C74500,C75200,C77400,etc
Phosphor bronze:C50500,C51100,C52100,C51980,etc
Outside
diameter
2-914mm
Wall thickness
0.5-80mm
Length
1-12m,or as required
Price term
Ex-Work,FOB,CNF,CFR,CIF,etc
Export to
Ireland,Singapore,Indonesia,Ukraine,SaudiArabia,Spain,Canada,USA,Brazil,Thailand,Korea,India,Egypt,Spain,etc
Package
Standard export seaworthy package,suit for all kinds of transport,or as required.
Container
Size
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
Application
Brass pipe have strong, corrosion resistant properties, and become a modern contractor in all of commodity
house pipes,heating, cooling water piping installation of choice
Contact
nina-tongmao@sdtmtg.com


DETAILED PHOTOS

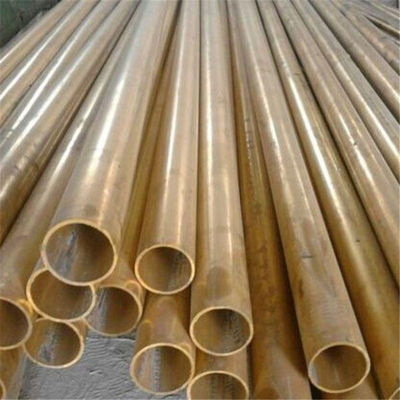

Nickel ASTM C7060 Seamless Copper Pipe Nickle Brass Tubes For Air Condition 0

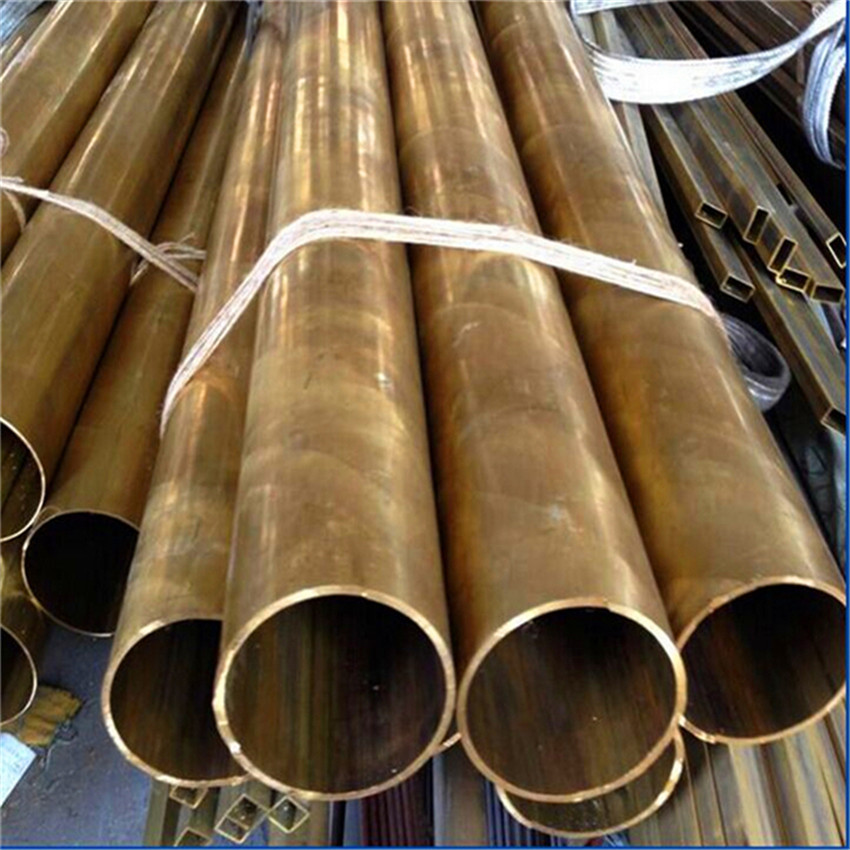

Nickel ASTM C7060 Seamless Copper Pipe Nickle Brass Tubes For Air Condition 1




PRODUCT PARAMETERS


Copper Alloy Chemical Composition Temper Mechanical Property
Copper
%		 Phosphorus
%		 Tensile Strength
MPa		 Elongation
%		 Hardness
HV
Cu-DHP ≥ 99.90 0.015-0.040 R220 ≥ 220 ≥ 40 40-70
Cu-DHP ≥ 99.90 0.015-0.040 R250 ≥ 250 ≥ 30 75-100
Cu-DHP ≥ 99.90 0.015-0.040 R290 ≥ 290 ≥ 3 ≥ 100


Size Range:

Actual Copper Tube Size
Outside Diameter x Wall Thickness		 Weight
(kg/m)		 e Working Pressure (kPa)
metric (mm) imperial (inches) 50ºC 75ºC
6.35 x 0.56 1/4" x 24swg 0.091 7,069 5,862
6.35 x 0.61 1/4" x 23swg 0.098 7,760 6,435
6.35 x 0.71 1/4" x 22swg 0.113 9,175 7,608
6.35 x 0.81 1/4" x 21swg 0.126 10,635 8,819
9.52 x 0.56 3/8" x 24swg 0.141 4,584 3,801
9.52 x 0.61 3/8" x 23swg 0.153 5,018 4,161
9.52 x 0.71 3/8" x 22swg 0.176 5,900 4,893
9.52 x 0.81 3/8" x 21swg 0.198 6,800 5,639
12.70 x 0.56 1/2" x 24swg 0.191 3,389 2,810
12.70 x 0.61 1/2" x 23swg 0.207 3,705 3,072
12.70 x 0.71 1/2" x 22swg 0.239 4,344 3,603
12.70 x 0.81 1/2" x 21swg 0.271 4,994 4,141
15.88 x 0.56 5/8" x 24swg 0.241 2,688 2,229
15.88 x 0.61 5/8" x 23swg 0.262 2,936 2,435
15.88 x 0.71 5/8" x 22swg 0.303 3,438 2,851
15.88 x 0.81 5/8" x 21swg 0.343 3,945 3,270
15.88 x 0.91 5/8" x 20swg 0.383 4,459 3,698
15.88 x 1.02 5/8" x 19swg 0.426 5,031 4,172
19.05 x 0.56 3/4" x 24swg 0.291 2,228 1,848
19.05 x 0.71 3/4" x 22swg 0.336 2,846 2,360
19.05 x 0.91 3/4" x 20swg 0.464 3,684 3,055
19.05 x 1.14 3/4" x 0.045" 0.574 4,668 3,871
22.22 x 0.91 7/8" x 20swg 0.545 3,138 2,602
22.22 x 1.14 7/8" x 0.045" 0.675 3,970 3,292
22.22 x 1.40 7/8" x 0.055" 0.819 4,929 4,088


PACKING AND SHIPPING


- Plastic Bag Packing
- Carton Packing (with drier)
- Wooden Pallet
- Plastic Film Packing

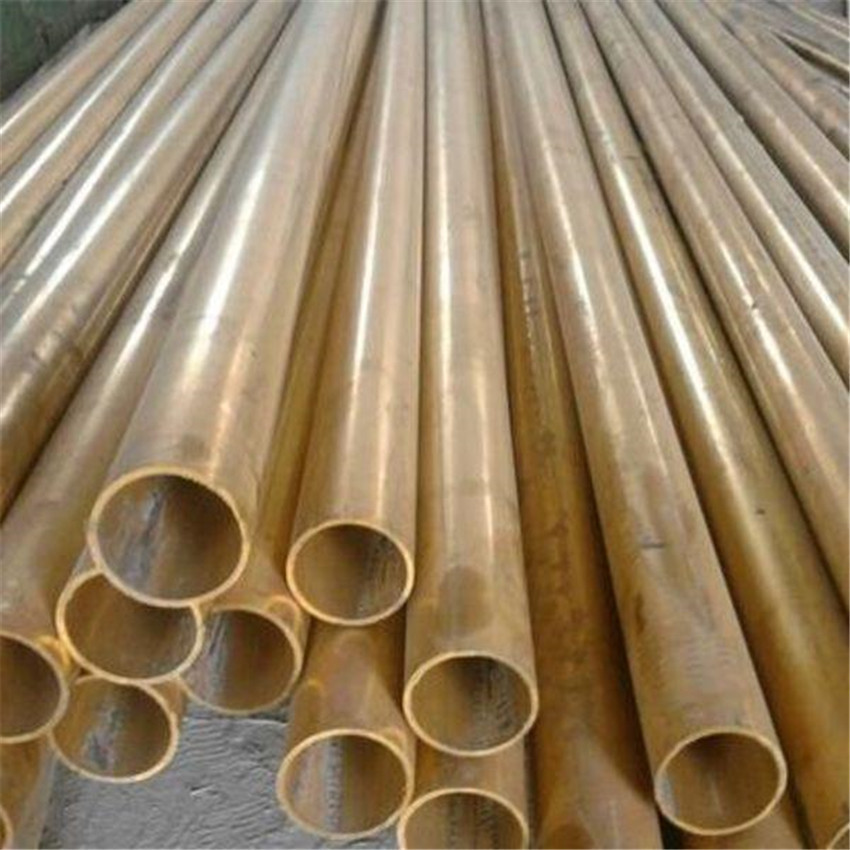

Nickel ASTM C7060 Seamless Copper Pipe Nickle Brass Tubes For Air Condition 2






FAQ

How can I contact with your company?
We are always ready to serve you via Email, Wechat or Mobile telephone.


What is your working time?
Monday-Saturday : 8:00AM-17:30PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . For detail,
please see our update holiday notice. During these period, if you have a demand, Please
send me an email.

Do you provide free samples?
Yes, we can provide a free small sample for testing, buyer should bear all the shipping costs.

What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
We are doing the best to match your demand.

What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
Normal order is 10-30days,it depends on customers' quantity.
Anyway,we try to offer good-quality products as soon as possible.
Nickel ASTM C7060 Seamless Copper Pipe Nickle Brass Tubes For Air Condition 3
