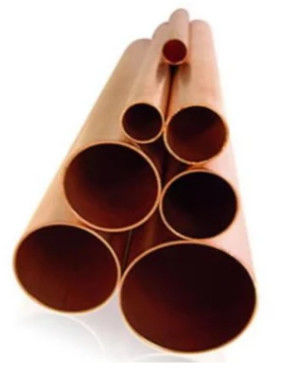

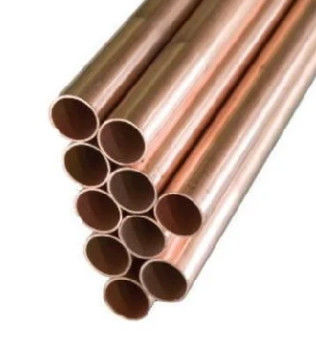

Red Copper Tube Seamless Copper Pipes T1 T2 T3 C11000 Pure Cu99.9%
Place of Origin | China |
---|---|
Brand Name | Tongmao |
Certification | IS9001 |
Model Number | Seamless Copper Pipe |
Minimum Order Quantity | 3 Tons |
Price | Negotiable |
Packaging Details | Sea Worth Packaging or Client's Request |
Delivery Time | 5-15 Working Days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 500 Tons - 1 Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Seamless Copper Pipe | Length | 1000mm ~ 12000mm |
---|---|---|---|
Grade | C10200, C10300, C10800, C12000, C12200 | Application | Aviation, Aerospace, Ships, Military Industry, Metallurgy, Electronics, Electrical, Mechanical, Transportation, Construction And Other Fields Of The National Economy |
Cu | 99.99% | ||
High Light | Pure Cu99.9% Seamless Copper Pipes,T2 T3 C11000 Seamless Copper Pipes,Cu99.9% Seamless Copper Tube |
Hot Selling Red Copper Tube 99.99 Seamless Copper Pipes T1 T2 T3 C11000 pure Cu99.9%
Product Description
copper Alloy | Chemical Composition | Temper | Mechanical Property | |||
Copper % |
Phosphorus % |
Tensile Strength MPa |
Elongation % |
Hardness HV |
||
Cu-DHP | ≥ 99.90 | 0.015-0.040 | R220 | ≥ 220 | ≥ 40 | 40-70 |
Cu-DHP | ≥ 99.90 | 0.015-0.040 | R250 | ≥ 250 | ≥ 30 | 75-100 |
Cu-DHP | ≥ 99.90 | 0.015-0.040 | R290 | ≥ 290 | ≥ 3 | ≥ 100 |
Copper Alloy | Temper | Cleanness | Standard |
Cu-DHP | R220 | ≤ 38mg/m² | EN 12735-1 |
Cu-DHP | R2250 | ≤ 38mg/m² | EN 12735-1 |
Cu-DHP | R290 | ≤ 38mg/m² | EN 12735-1 |
Maitan provides high quality Copper/ brass/ Cu-Ni tubes & pipes.
Standards: ASTM B111/ ASME SB111, ASTM B251, BS EN1057 or closer
Size range: OD 2.0 to 350mm, WT 0.3 to 50mm, Length 18m or as request.
Testing: 100% Eddy Current Testing, 100% hydraulic Testing.
Delivered in straight lengths or as U-bent tubes.
We also supply copper alloy complementary products for heat exchanger applications.
Finned Tube,Tubesheet, EEMU 146 pipe fitting, EEMU 145 pipe flange etc.
Type of product | Grade(s) | Technical requirements * according to |
Copper tube/ pipe | UNS C12200 | ASTM B111, ASME SB111 ASTM B135, ASME SB135 ASTM B251, ASME SB251 BS EN 1057 or closer |
Brass tube/pipe | UNS C23000, UNS C26200 ... UNS C44300, UNS C68700 ... |
|
Cupronickel tube/pipe | UNS C70600, UNS C71500 UNS C71640 |
Transportation: We support sea transportation, air transportation, land transportation and other modes of transportation and Various express delivery methods.
Payment: We support L / C, T/ T, Western Union, MoneyGram and other payment methods
FAQ:
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world.
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao ports, you can choose other ports according to your needs.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It caneffectively protect products from corrosion during ocean transportation.Send your message to this supplier
