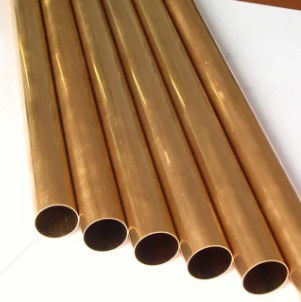

1/2 1/4 3/8 5/8 Inch Outer Dia Copper Pipe for Air Conditioning And Refrigeration
| Place of Origin | China |
|---|---|
| Brand Name | Tongmao |
| Certification | IS9001 |
| Model Number | Seamless Copper Pipe |
| Minimum Order Quantity | 3 Tons |
| Price | Negotiable |
| Packaging Details | Sea Worth Packaging or Client's Request |
| Delivery Time | 5-15 Working Days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 500 Tons - 1 Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Seamless Copper Pipe | Standard | ASTM, JIS, AISI, EN, GB, DIN, API, BS, CE, ISO |
|---|---|---|---|
| Grade | C10200, C10300, C10800, C12000, C12200 | Application | Aviation, Aerospace, Ships, Military Industry, Metallurgy, Electronics, Electrical, Mechanical, Transportation, Construction And Other Fields Of The National Economy |
| Length | 1000mm ~ 12000mm | Cu | 99.99% |
| High Light | 5/8 Inch Copper Capillary Pipes,3/8 Outer Dia Seamless Copper Pipe,Air Conditioning Copper Tube Seamless |
||
Product Description
1/ 2 1/ 4 3/ 8 5/8 Inch Outer Diameter Copper Pipe Air Conditioning And Refrigeration Copper Capillary Pipes
Production description
| Item | Copper tube ,Brass tube,Bronze tube | ||
| Type | Straight copper pipe,Pancake coil copper pipe,Capillary copper pipe | ||
Standard |
GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395, ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc |
||
Material |
T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300, C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000, C71500,C71520,C71640,C72200,etc |
||
| Shape | Round,Square,Rectangular,Oval,half-round | ||
| Round | OD:2-914mm (1/16"-36") WT:0.2-120mm(SCH5S-SCH160S) | ||
| Square | Size:2*2-1016*1016mm(1/16"-40") WT:0.2-120mm | ||
| Rectangular | Size:2*4-1016*1219mm(1/16"-48") WT:0.2-120mm | ||
| Length | 1m,2m,3m,6m,or as required | ||
| Hardness | 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc | ||
| Surface | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required | ||
Application |
1. Pancake Coil for ACR, General Engineering Applications 2. LWC Coil for ACR, General Engineering Applications 3. Straight Copper Tubes for ACR and Refrigeration 4. Inner-grooved copper tube for ACR and Refrigeration 5. Copper Pipe for Transportation System of water, gas and oil 6.PE-coated copper tube for water/gas/oil transportation system 7.Semi-finished Copper tube for industrial applications |
||
=====================================================================================
Packaging & Delivery
Packing with Plastic Mat, Waterproof Paper , drying agent/desiccant and plastic cap .
1) For light ,short tubes ,we use exporting wooden case
2)For heavy, long tubes ,we use iron frame wooden case
3)On the top of the package ,we weld more square steel to protect the package from damage during the sea or air shipment
Shanghai, Ningbo, Shenzhen,Qingdao,Any port in China as per your request
Lead Time :
5-30 days after getting your payment/as per your order quantity
=====================================================================================
|
Mark
|
Type
|
typical appearance
|
Anti-corrosion time
|
|
A
|
Copper tube
|
Bright or light blue
|
6-8h
|
|
B
|
White zinc tube
|
Rainbow and white
|
24-36h
|
|
C
|
Color zinc tube
|
Yellow rainbow
|
72-96h
|
|
D
|
Olive green tube
|
Olive green or bronze color
|
96-144h
|
|
E
|
PVF tube(mainland)
|
Black
|
≥1000h
|
|
PVF tube(abroad)
|
3000-5000h
|
=====================================================================================
| Copper Straight Pipe Tube(Outer Diameter * Wall Thickness) | |||
| OD * WT(mm) | OD * WT(mm) | OD * WT(mm) | OD * WT(mm) |
| 2*0. 5 | 3*0. 5 | 3*1 | 4*0. 5 |
| 4*1 | 5*0. 5 | 5*1 | 6*0. 5 |
| 6*1 | 6*1. 5 | 6*2 | 7*0. 5 |
| 7*1 | 7*1. 5 | 7*2 | 8*0. 5 |
| 8*1 | 8*1.5 | 8*2 | 9*0. 5 |
| 9*1 | 9*1.5 | 9*2 | 10*1 |
| 10*1. 5 | 10*2 | 11*1 | 11*1.5 |
| 11*2 | 12*1 | 12*1. 5 | 12*2 |
| 13*1 | 13*1. 5 | 13*2 | 14*1 |
| 14*1.5 | 14*2 | 15*1 | 15*1. 5 |
| 15*2 | 16*1 | 16*1.5 | 16*2 |
| 17*1 | 17*1.5 | 17*2 | 18*1 |
| 18*1. 5 | 18*2 | 19*1 | 19*1.5 |
| 19*2 | 20*1 | 20*1.5 | 20*2 |
| 21*1 | 21*1.5 | 21*2 | 22*1 |
| 22*1.5 | 22*2 | 23*1.5 | 24*1 |
| 24*1.5 | 24*2 | 25*1 | 25*1.5 |
| 25*2 | 27*1 | 27*1.5 | 27*2 |
| 28*1 | 28*1.5 | 28*2 | 29*1 |
| 29*1.5 | 29*2 | 30*1 | 30*1.5 |
| 30*240*3 | 40*5 | 42*1.5 | 45*1.5 |
| 50*1.5 | 54*1.5 | 57*39 | 60*4 |
| 60*5 | 60*6 | 67*2. 5 | 76*2 |
| 89*2 | 89*2. 5 | 108*2. 5 | 133*2. 5 |
| Copper Coil Pipe (Outer Diameter * Wall Thickness) | |||
| OD * WT(mm) | OD * WT(mm) | OD * WT(mm) | OD * WT(mm) |
| 2*0. 5 | 3*0. 5 | 4*0. 5 | 5*0. 5 |
| 6*1 | 6.35*0. 6 | 6. 35*0. 8 | 6. 35*1 |
| 8*1 | 9. 52*0. 5 | 9. 52*0. 8 | 9. 52*1 |
| 10*1 | 12*1 | 12. 7*0. 8 | 12. 7*1 |
| 15. 88*0. 5 | 15. 88*0. 8 | 15. 88*1 | 19. 05*0. 5 |
| 19. 05*0. 8 | 19. 05*1 | 22*2 | 22*2.2 |
Good and e Package . we packing very careful protection your goods and samples. |
|||
| 1. HS code for you save cost and time | Copper Tube:7411219000;Fin Tube:84199090; Heat Exchanger:8516210000 | ||
2.Genernal packing and customized packaging follow you request: |
Packing with Plastic Mat, Waterproof Paper , drying agent/desiccant and plastic cap . 1) For light ,short tubes ,we use exporting wooden case 2)For heavy, long tubes ,we use iron frame wooden case 3)On the top of the package ,we weld more square steel to protect the package from damage during the sea or air shipment |
||
| 3.FOB cost reference | USD1-10/M | ||
=====================================================================================
=================================================================================
Product description:
Use: Mainly used for air conditioning installation and connection pipe; no leakage, no crack under the pressure of work.It can also be used in chemical industry, medical treatment, drinking water and other areas as the use of pipelines. Orders need to determine the length of single piece .
===========================================================================
Our advantages:
Smooth incision :Smooth,refuse rough.no burrs.
