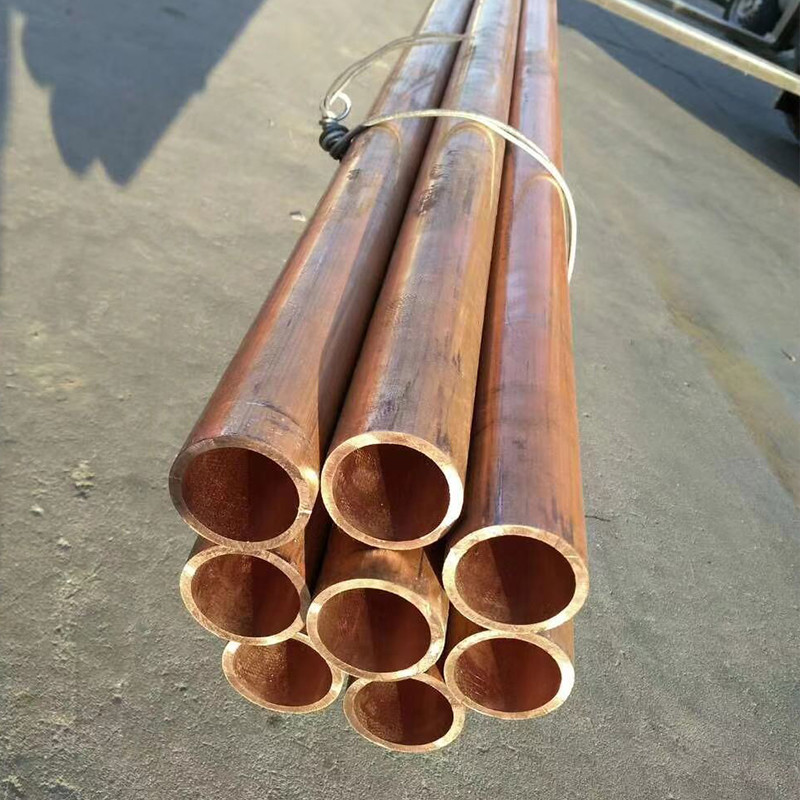

1.5--30mm C51000 C5102 Copper Alloy Round Tube Welded / Seamless Pipes

Place of Origin China
Brand Name TONGMAO
Certification ISO9001, MTC
Model Number Seamless Copper Pipe
Minimum Order Quantity 3tons
Price Negotiable
Packaging Details Standard Packing
Delivery Time 7-15days
Payment Terms L/C, T/T
Supply Ability 500tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Red Copper Alloy Alloy
Color Red Purity 99.90%~99.9%
Technology Hot Rolled/Cold Rolled Phosphorus 0.015-0.040%
High Light

C51000 Copper Alloy Round Tube


Seamless Copper Alloy Round Pipes

Leave a Message
Product Description

1.5--30mm C51000 C5102 Copper Alloy Round Tube Welded/Seamless Pipes

copper Alloy Chemical Composition Temper Mechanical Property
Tensile Strength
Cu-DHP ≥ 99.90 0.015-0.040 R220 ≥ 220 ≥ 40 40-70
Cu-DHP ≥ 99.90 0.015-0.040 R250 ≥ 250 ≥ 30 75-100
Cu-DHP ≥ 99.90 0.015-0.040 R290 ≥ 290 ≥ 3 ≥ 100

Cleanness Requirement - Air Conditioner and Refrigeration Copper Tube

Copper Alloy Temper Cleanness Standard
Cu-DHP R220 ≤ 38mg/m² EN 12735-1
Cu-DHP R2250 ≤ 38mg/m² EN 12735-1
Cu-DHP R290 ≤ 38mg/m² EN 12735-1


An alloy consisting of pure copper as a base with the addition of one or more other elements. Pure copper is purple red, also known as red copper. The density of pure copper is 8.96, and the melting point is 1083℃. It has excellent electrical conductivity, thermal conductivity, ductility and corrosion resistance. Mainly used for making generators, busbars, cables, switching devices, transformers and other electrical equipment and heat conduction equipment such as heat exchanger, pipe, solar heating device plate collector. Commonly used copper alloys are divided into brass, bronze and white copper.
Copper alloys can be classified in three ways:

According to the alloy
According to the alloy system, it can be divided into non-alloyed copper and alloyed copper. Non-alloy copper includes high purity copper, tough copper, deoxidized copper, anaerobic copper and so on. Customarily, non-alloy copper is called red copper or pure copper, also called red copper, and other copper alloys belong to alloy copper. In China and Russia, alloying copper is divided into brass, bronze and white copper, and then divided into small alloying series in a large class.

According to the function
By function, A thermally conductive copper alloy (mainly the alloying and microalloyed copper), structure with copper alloy (including almost all the copper alloy), corrosion resisting copper alloys, tin, brass, aluminum, brass, various main titanium white brass, aluminum bronze, bronze, etc.) not wear-resistant copper alloy (mainly including elements such as lead, tin, aluminum, manganese complex brass, aluminum bronze, etc.), free cutting copper alloy, copper, lead, copper - Tellurium, copper-antimony alloy), elastic copper alloy (mainly antimony bronze, aluminum bronze, beryllium bronze, titanium bronze, etc.), damping copper alloy (high manganese copper alloy, etc.), art copper alloy (pure copper, simple copper, tin bronze, aluminum bronze, white copper, etc.). Obviously, many copper alloys are polygenic.

Material formation method
According to the material forming method, it can be divided into casting copper alloy and deformation copper alloy. In fact, many copper alloys can be used for both casting and deformation. In general, deformed copper alloys can be used for casting, but many cast copper alloys cannot be forged, extruded, deep drawn and other deformation processing. Cast copper alloys and deformed copper alloys can be subdivided into cast copper, brass, bronze and white copper.
