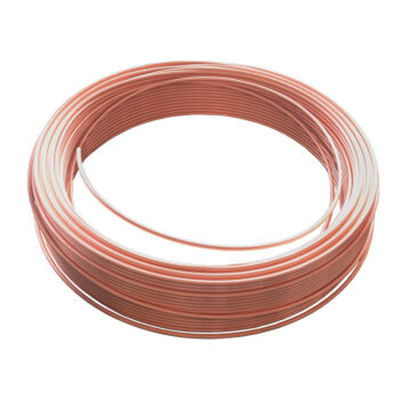

Red Copper Tube 15m Length Air Conditioning Copper Pipe 3/8 1/4 in Coil

  • Red Copper Tube 15m Length Air Conditioning Copper Pipe 3/8 1/4 in Coil
  • Red Copper Tube 15m Length Air Conditioning Copper Pipe 3/8 1/4 in Coil
Place of Origin China
Brand Name TONGMAO
Certification ISO9001, MTC
Model Number Seamless Copper Pipe
Minimum Order Quantity 3tons
Price Negotiable
Packaging Details Standard Packing
Delivery Time 7-15days
Payment Terms L/C, T/T
Supply Ability 500tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade T2 Elongation 35% - 40%
Cu 99.9% State Semi Hard
Color Purple Origin Shandong, China
High Light

15m Air Conditioning Copper Pipe

,

15m Length Red Copper Tube
Leave a Message
Product Description

Red Copper Tube 15m Length Air Conditioning Copper Pipe 3/8 1/4 in Coil

Material
 T1,T2,TP1,TP2,C10100,C10200,C10300,C10400,C10500,C10700,C10800, C10910,
C10920,C10930,C11000,C11300,C11400,C11500,C11600,C12000, C12200,C12300,
C12500,C14200,C14420,C14500,C14510,C14520,C14530, C17200,C19200,C21000,
C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,
C44500,C60800,C63020,C65500,C68700,C70400,CC70620,C71000,C71500,C71520,
C71640,C72200,C86500,C86400,C86200,C86300,C86400,C90300,C90500,C83600 C92200,C95400,C95800 and etc.
Standard
 ASTMB152,B187,B133,B301,B196,B441,B465,JISH3250-2006,GB/T4423-2007,etc
Diameter
 10mm~900mm
Length
 5.8m,6m,or as required
Surface
 mill,polished,bright,hair line,brush,sand blast,etc
Shape Round,Rectangular, Pancake,elliptical
Package
 Standard export package,suit for all kinds of transport,or as required.
Container Size
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
Price Term
 Ex-Work,FOB,CNF,CFR,CIF,FCA,DDU,DDP,etc



Chemical composition of T1 copper tube:

Copper + Silver CuAg: ≥99.95; Tin Sn: ≤0.002; Zinc Zn: ≤0.005; Lead Pb: ≤0.005; Nickel Ni: ≤0.005; Iron Fe: ≤0.005; Beryllium Sb: 0.002; Sulfur S: ≤0.005; Arsenic As: ≤0.002; Bi: ≤0.001; Oxygen O: ≤0.06; Note: ≤0.05(impurities)

T2 copper tube chemical composition:

Copper + Silver CUAG (%) : ≥99.90; SN (%) : ≤0.002; Zinc ZN (%) : ≤0.005; PB (%) : ≤0.005; NI (%) : ≤0.005; Iron FE (%) : ≤0.005; Beryllium SB (%) : ≤0.002; S (%) : ≤0.005; Arsenic AS (%) : ≤0.002; BI BI (%) : ≤0.001; Oxygen O (%) : ≤0.06; Other (%) : ≤0.1(impurities)

TP2 phosphorus deoxidation copper tube chemical composition:

Cu+Ag Cu+Ag: ≥99.85 Sn: ≤0.01 Pb: ≤0.005 P: 0.013 ~ 0.050 Ni: ≤0.01 Fe: ≤0.05 (0.005) Sb: ≤0.002 S: ≤0.005 As: Bi: ≤0.002 Oxygen O: ≤0.01 Note: ≤0.15(impurities)

Chemical composition of TU1 oxygen-free copper tube: Lead (Pb) of 0.003 or less, zinc (zinc) 0.003 or less, iron (Fe) of 0.004 or less, phosphorus (P) of 0.002 or less, bismuth (Bi) of 0.001 or less, antimony (Sb) 0.002, or less sulfur (S) of 0.004 or less, tin (Sn) of 0.002 or less, nickel (Ni) of 0.002 or less, Arsenic (As) 0.002, or less oxygen (O) of 0.002 or less, silver copper + + Ag (Cu) of 99.97 or higher, impurities total % 0.03 or less.

Red copper tube is rose red metal, density value 8.96g/cm, specific gravity value 8.89g/mm, thermal conductivity of 386.4W /(M.K) resistivity (20℃) 0.018 ω ·mm2/m, hardness value ≥ 85.2HV. According to hardness, it is divided into O state, 1/4 hard, 1/2 half hard, full hard and extra hard. Product parameters: Product status: M (soft), Y2 (1/2 hard), Y (hard), T (extra hard) and other states.

Chinese copper processing materials can be divided into four categories according to their composition: ordinary copper (T1, T2, T3, T4), oxygen-free copper (TU1, TU2 and high purity, vacuum oxygen-free copper), deoxidized copper (TUP, TUMn), and special copper with a small amount of alloying elements (arsenic-copper, telluric-copper, silver-copper). Copper is second only to silver in conductivity and thermal conductivity, and is widely used in the production of electrical and thermal conductive equipment. Copper has good corrosion resistance in air, sea water and some non-oxidizing acids (hydrochloric acid, dilute sulfuric acid), alkali, salt solution and various organic acids (acetic acid, citric acid). Copper pipe is widely used in chemical industry, sanitary ware, refrigeration, electric power, auto parts, instruments, steam turbines, lamps, welding and cutting tools, connectors, heat exchangers, pens, rivets, fishing gear, Musical Instruments, precision parts and other aspects.

Red Copper Tube 15m Length Air Conditioning Copper Pipe 3/8 1/4 in Coil 0
