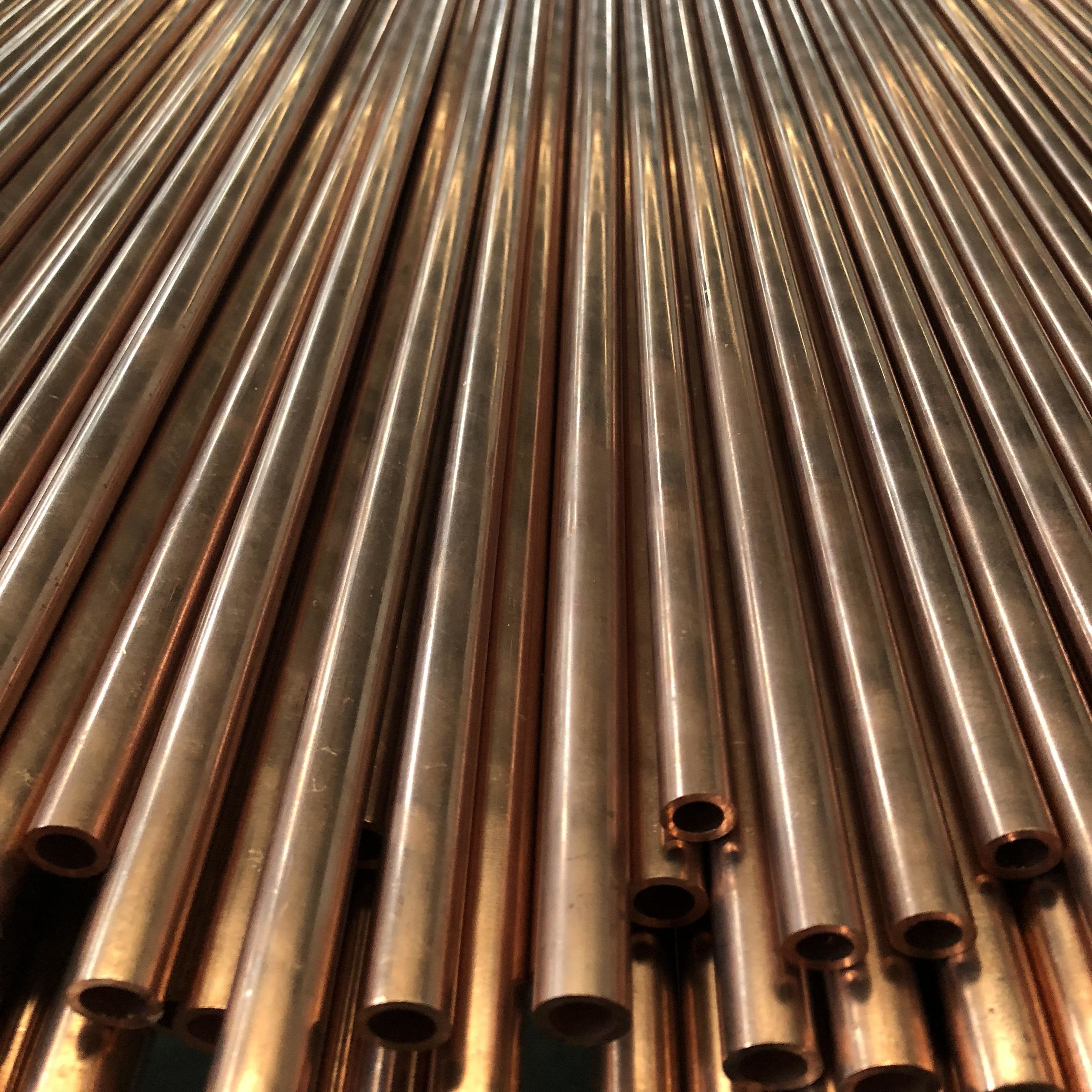

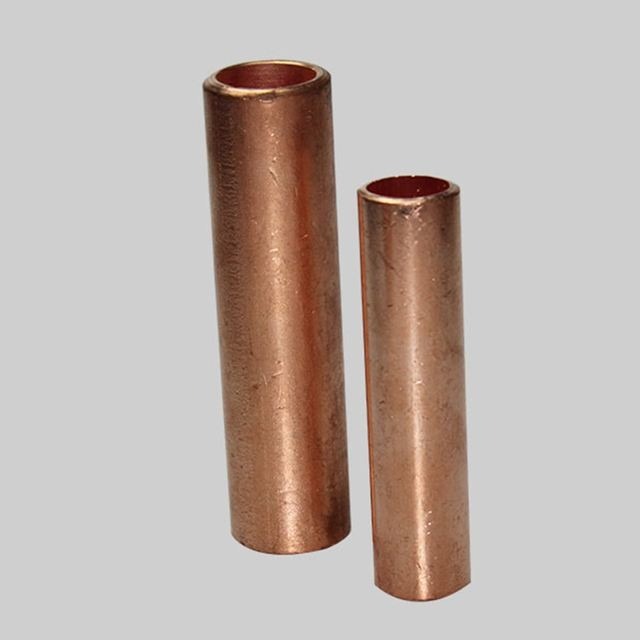

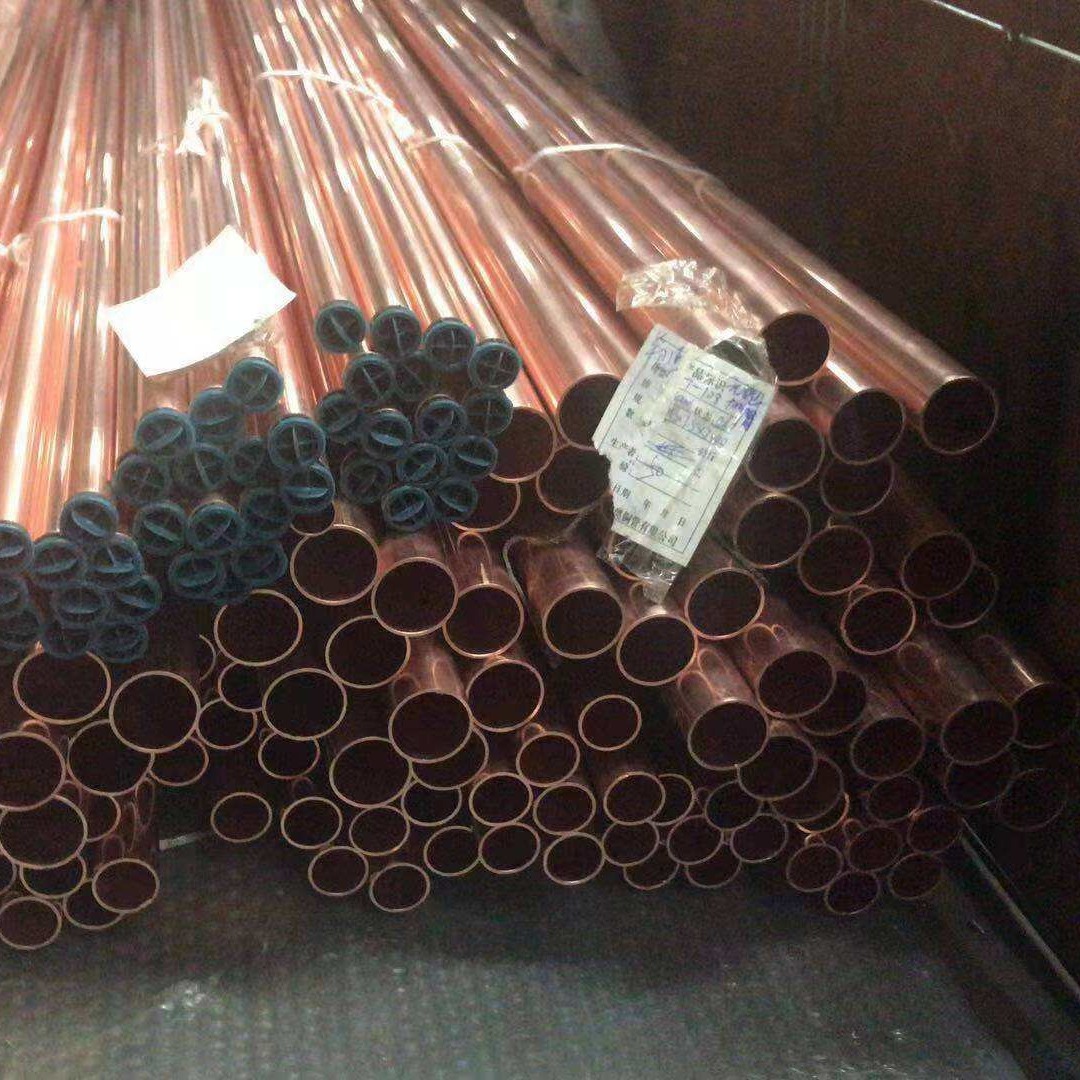

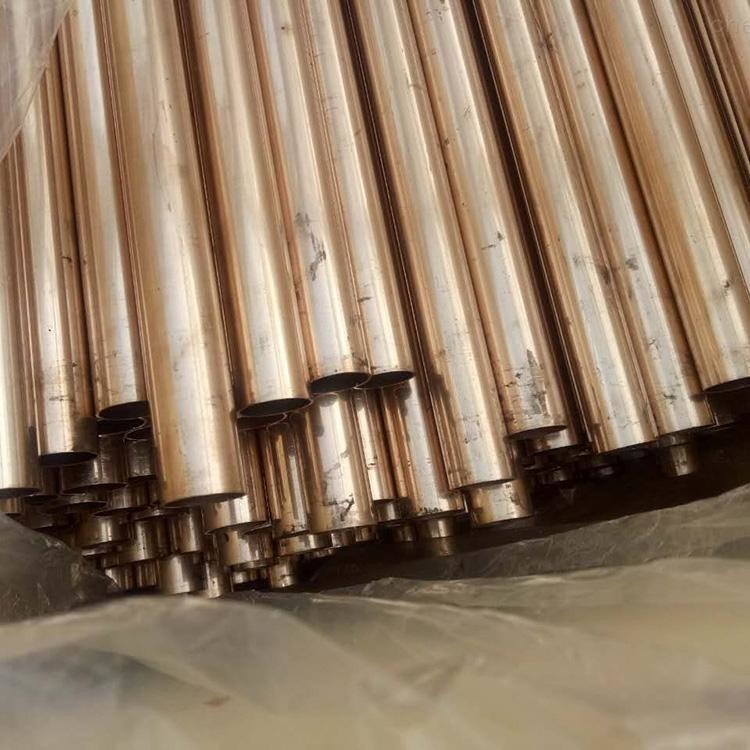

Copper-Nickel Alloy tube:
1)Up to GB/T8890/ASTM B111/JIS H3300/BS EN12451 standards and so on.
2)Material designation: BFe10-1-1 / C70600 / C7060X / CuNi10Fe1Mn / CuNi9010 / Cu90Ni10 and BFe30-1-1 / C71500 / CuNi30Mn1Fe / CuNi7030 / Cu70Ni30 or other alloy
Material Brand of Copper-Nickel Alloy tube:

3)Tubes temper: All tempers are available (Goods supply state: Annealed condition)
4)Dimensions: Outer diameter:5-419mm, Wall thickness: 0.5-10mm or according to the buyers' requirements, and also length and tolerance subject to the buyer's decisions.
5) Tubes in good straightness, with clean surface of both inside and outside
6)Application range: Copper-Nickel Alloy tube for condenser and heat-exchangers, Water Evaporators, Boiler Blowdown Heat Exchangers, air coolers, Gland Steam Condensers, Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After Coolers, Ferrules, Oil Well Pump Liner, Distiller , Marine Industry , and Nuclear Power etc.
C70600 Copper Nickel "90/10"ASTM B151, MIL C15726F, SAE J461, SAE J463C70600 (C706) & C71500 (C715), Copper nickel offers excellent corrosion resistance, especially in marine salt water environments. The main, wrought copper-nickel alloys chosen for sea water service contain 10 or 30 percent nickel. They also have important additions of iron and manganese which are necessary to maintain good corrosion resistance.Typical Uses for C706 Copper Nickel "90/10":AUTOMOTIVE: Power Steering Tube, Brake Lines
CONSUMER: Screw Lamp Bases
INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators
MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses
PLUMBING: FlangesSizes Available From Hehong Precision(New Huahong Copper)TUBE&PIPE: 1/4" - 16" diameter , 6.35mm - 419mm diameter for seamless.
Bar:8-90,100,168mm diameter.

Copper-nickel UNS C70600 has a copper content of not less than 88.6%.
Tabulated below are the mechanical properties of UNS C70600 tubes as a function of heat treatment.

The chemical composition of UNS C70600 copper alloy is outlined in the following table.

Equivalent materials to UNS C70600 copper alloy are given in the table below.

Please choose product name by CTRL+F to search your info as below:
Admiralty Brass Tube for condenser and heat-exchangers series:
1)Up to GB/T8890 / ASTM B111 / JIS H3300 / BS EN12451 standards and so on.
2) Material Brand of Admiralty Brass Tube:

3)Tubes temper: All tempers are available (Goods supply state: Annealed condition)
4)Dimensions: Outer diameter:5-100mm, Wall thickness: 0.5-10mm or according to the buyers' requirements, and also length and tolerance subject to the buyer's decisions.
5)Tubes in good straightness, with clean surface of both inside and outside
6)Application range: Admiralty Brass Tube for condenser and heat-exchangers, Water Evaporators, Boiler Blowdown Heat Exchangers, air coolers, Gland Steam Condensers, Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After Coolers, Ferrules, Oil Well Pump Liner, Distiller , Marine Industry , and Nuclear Power etc.

Aluminum Brass Tube for condenser , heat-exchangers and nuclear power series:
1)Up to GB/T8890 / ASTM B111 / JIS H3300 / BS EN12451 standards and so on.
2) Material Brand of Aluminum Brass Tube:

3)Tubes temper: All tempers are available (Goods supply state: Annealed condition)
4)Dimensions: Outer diameter:5-100mm, Wall thickness: 0.5-10mm or according to the buyers' requirements, and also length and tolerance subject to the buyer's decisions.
5)Tubes in good straightness, with clean surface of both inside and outside
6)Application range: Aluminum Brass Tube for condenser and heat-exchangers, Water Evaporators, Boiler Blowdown Heat Exchangers, air coolers, Gland Steam Condensers, Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After Coolers, Ferrules, Oil Well Pump Liner, Distiller , Marine Industry , and Nuclear Power etc.

Copper-Nickel Alloy tube:
1)Up to GB/T8890/ASTM B111/JIS H3300/BS EN12451 standards and so on.
2)Material designation: BFe10-1-1 / C70600 / C7060X / CuNi10Fe1Mn / CuNi9010 / Cu90Ni10 and BFe30-1-1 / C71500 / CuNi30Mn1Fe / CuNi7030 / Cu70Ni30 or other alloy
Material Brand of Copper-Nickel Alloy tube:

3)Tubes temper: All tempers are available (Goods supply state: Annealed condition)
4)Dimensions: Outer diameter:5-419mm(16" , World's Biggest size for Seamless), Wall thickness: 0.5-10mm or according to the buyers' requirements, and also length and tolerance subject to the buyer's decisions.
5) Tubes in good straightness, with clean surface of both inside and outside
6)Application range: Copper-Nickel Alloy tube for condenser and heat-exchangers, Water Evaporators, Boiler, Heat Exchangers, air coolers, Gland Steam Condensers, Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After Coolers, Ferrules, Oil Well Pump Liner, Distiller , Marine Industry , and Nuclear Power etc.


C70600 Copper Nickel "90/10"

ASTM B151, MIL C15726F, SAE J461, SAE J463

C70600 (C706) & C71500 (C715), Copper nickel offers excellent corrosion resistance, especially in marine salt water environments. The main, wrought copper-nickel alloys chosen for sea water service contain 10 or 30 percent nickel. They also have important additions of iron and manganese which are necessary to maintain good corrosion resistance.

Typical Uses for C706 Copper Nickel "90/10":

AUTOMOTIVE: Power Steering Tube, Brake Lines
CONSUMER: Screw Lamp Bases
INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators
MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses
PLUMBING: Flanges

Sizes Available From Hehong Precision(New Huahong Copper)

TUBE&PIPE: 1/4" - 16" diameter , 6.35mm - 419mm diameter for seamless.
Bar:8-90,100,168mm diameter.

Copper-nickel UNS C70600 has a copper content of not less than 88.6%.
Tabulated below are the mechanical properties of UNS C70600 tubes as a function of heat treatment.

The chemical composition of UNS C70600 copper alloy is outlined in the following table.

Equivalent materials to UNS C70600 copper alloy are given in the table below.

Copper-Nickel Alloy Tube Sheet / Blind flange
1)ASTM B171 and other standards ,Forgings ,with Certificate of Europe PED 4.3 or 3.1 , 3.2 , 3.3
2)Material designation: BFe10-1-1 / C70600 / C7060X / CuNi10Fe1Mn / CuNi9010 / Cu90Ni10 and BFe30-1-1 / C71500 / CuNi30Mn1Fe / CuNi7030 / Cu70Ni30 or other alloy.
Material Brand of Copper-Nickel Alloy Tube Sheet / Blind flange:

Other materials: C46400 , C44300 , C36000 , CUAL10NI5FE4 , BS 1400 LGCS and other copper alloy metals.
3)Tubes temper: All tempers are available (Goods supply state: Annealed condition)
4)Dimensions: Outer diameter:Up to 2000mm Thickness: Up to 800mm or according to the buyers' requirements, and also length and tolerance subject to the buyer's decisions.
5) Tube Sheet / Blind flange in good and clean surface.
6)Application range: Copper-Nickel Alloy Tube Sheet / Blind flange for condenser and heat-exchangers, Water Evaporators, Boiler Blowdown Heat Exchangers, air coolers, Gland Steam Condensers, Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After Coolers, Ferrules, Oil Well Pump Liner, Distiller , Marine Industry , and Nuclear Power etc.
