Nickel 10mm 22mm Soft Seamless Copper Pipe ISO9001 Type K Soft Copper Tubing For Air Condition

  • Nickel 10mm 22mm Soft Seamless Copper Pipe ISO9001 Type K Soft Copper Tubing For Air Condition
  • Nickel 10mm 22mm Soft Seamless Copper Pipe ISO9001 Type K Soft Copper Tubing For Air Condition
  • Nickel 10mm 22mm Soft Seamless Copper Pipe ISO9001 Type K Soft Copper Tubing For Air Condition
Place of Origin China
Brand Name Tongmao
Certification ISO9001, MTC
Model Number Soft red copper tube
Minimum Order Quantity 500KGS
Price Negotiable
Packaging Details Coil with plastic in carton packing
Delivery Time 7-15days
Payment Terms T/T, L/C
Supply Ability 500TONS ONE MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper Nickel Alloy Pipe Cu (min) 99.99%, 99.97, According To The Material
Application Air Condition Or Refrigerator, Water Heater, Aircon Systems, Oil Cooler Pipe, Refrigeration Parts Surface Bright, Copper
Color Red Thickness 0.2-14 Mm
Material TP2 C11000 C12200 Length 15m
Highlight

ISO9001 type k soft copper tubing

,

Nickel 22mm soft copper pipe

,

10mm soft drawn copper tubing
Leave a Message
Product Description

Nickel 10mm 22mm Soft Seamless Copper Pipe ISO9001 Type K Soft Copper Tubing For Air Condition



Soft copper pipe nickel tube pancake coil are widely used in the installation of air conditioning and refrigeration systems. Produced in the following size ranges:
Min. Diameter: 1/4" (6.35mm)
Max. Diameter: 7/8" (22.22mm)
Lengths: Standard available lengths are 15m, 30m, 50FT



PRODUCT DESCRIPTION



Application Air Condition Or Refrigerator, Water Heater, Aircon systems, Oil cooler pipe, Refrigeration Parts
Length Customers' Requirement, 1-12m,15m, 30m
Grade C11000 C10200 C12000 C12200, TU2, TP1,TP2,
Type Pancake Coil Copper Pipe, Straight Copper Pipe, Insulated copper pipe, straight and coil
Wall thickness 0.2mm~12mm, 0.5mm-14mm, 0.8, 0.35-1.5mm, 0.4-3.0mm
Cu (min) 99.99%, 99.97, According to the material
Outer diameter 6mm-22Mm, 1/4"-7/8", 10mm~914mm, DN10~DN900
Surface Bright, Polished, PE coated, copper, Mill Surface
Color Red
Standard ASTM B280/EN 12735-1, ASTM B725, EN, ASTM  JIS GB ASTM B68
Place of original China
Price term CIF CFR FOB

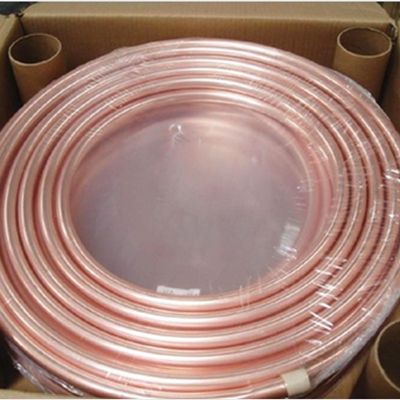

DETAILED PHOTOS






Nickel 10mm 22mm Soft Seamless Copper Pipe ISO9001 Type K Soft Copper Tubing For Air Condition 0

PRODUCT PARAMETERS


Copper Alloy Chemical Composition Temper Mechanical Property
Copper
%		 Phosphorus
%		 Tensile Strength
MPa		 Elongation
%		 Hardness
HV
Cu-DHP ≥ 99.90 0.015-0.040 R220 ≥ 220 ≥ 40 40-70
Cu-DHP ≥ 99.90 0.015-0.040 R250 ≥ 250 ≥ 30 75-100
Cu-DHP ≥ 99.90 0.015-0.040 R290 ≥ 290 ≥ 3 ≥ 100


Size Range:

Actual Copper Tube Size
Outside Diameter x Wall Thickness		 Weight
(kg/m)		 e Working Pressure (kPa)
metric (mm) imperial (inches) 50ºC 75ºC
6.35 x 0.56 1/4" x 24swg 0.091 7,069 5,862
6.35 x 0.61 1/4" x 23swg 0.098 7,760 6,435
6.35 x 0.71 1/4" x 22swg 0.113 9,175 7,608
6.35 x 0.81 1/4" x 21swg 0.126 10,635 8,819
9.52 x 0.56 3/8" x 24swg 0.141 4,584 3,801
9.52 x 0.61 3/8" x 23swg 0.153 5,018 4,161
9.52 x 0.71 3/8" x 22swg 0.176 5,900 4,893
9.52 x 0.81 3/8" x 21swg 0.198 6,800 5,639
12.70 x 0.56 1/2" x 24swg 0.191 3,389 2,810
12.70 x 0.61 1/2" x 23swg 0.207 3,705 3,072
12.70 x 0.71 1/2" x 22swg 0.239 4,344 3,603
12.70 x 0.81 1/2" x 21swg 0.271 4,994 4,141
15.88 x 0.56 5/8" x 24swg 0.241 2,688 2,229
15.88 x 0.61 5/8" x 23swg 0.262 2,936 2,435
15.88 x 0.71 5/8" x 22swg 0.303 3,438 2,851
15.88 x 0.81 5/8" x 21swg 0.343 3,945 3,270
15.88 x 0.91 5/8" x 20swg 0.383 4,459 3,698
15.88 x 1.02 5/8" x 19swg 0.426 5,031 4,172
19.05 x 0.56 3/4" x 24swg 0.291 2,228 1,848
19.05 x 0.71 3/4" x 22swg 0.336 2,846 2,360
19.05 x 0.91 3/4" x 20swg 0.464 3,684 3,055
19.05 x 1.14 3/4" x 0.045" 0.574 4,668 3,871
22.22 x 0.91 7/8" x 20swg 0.545 3,138 2,602
22.22 x 1.14 7/8" x 0.045" 0.675 3,970 3,292
22.22 x 1.40 7/8" x 0.055" 0.819 4,929 4,088

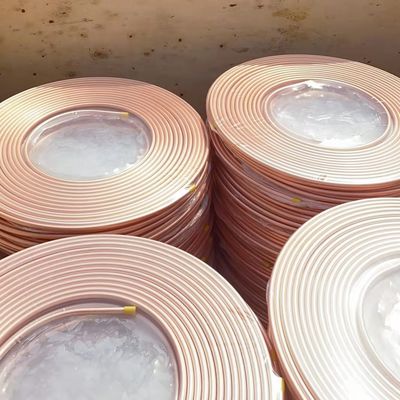

PACKING AND SHIPPING


- Plastic Bag Packing
- Carton Packing (with drier)
- Wooden Pallet
- Plastic Film Packing


Nickel 10mm 22mm Soft Seamless Copper Pipe ISO9001 Type K Soft Copper Tubing For Air Condition 1






FAQ

How can I contact with your company?
We are always ready to serve you via Email, Wechat or Mobile telephone.


What is your working time?
Monday-Saturday : 8:00AM-17:30PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . For detail,
please see our update holiday notice. During these period, if you have a demand, Please
send me an email.

Do you provide free samples?
Yes, we can provide a free small sample for testing, buyer should bear all the shipping costs.

What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
We are doing the best to match your demand.

What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
Normal order is 10-30days,it depends on customers' quantity.
Anyway,we try to offer good-quality products as soon as possible.
Nickel 10mm 22mm Soft Seamless Copper Pipe ISO9001 Type K Soft Copper Tubing For Air Condition 2
