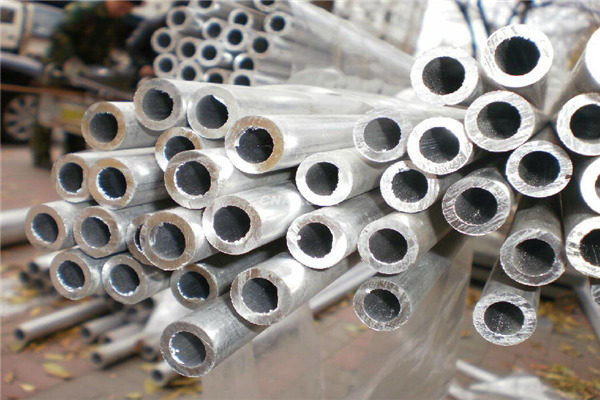

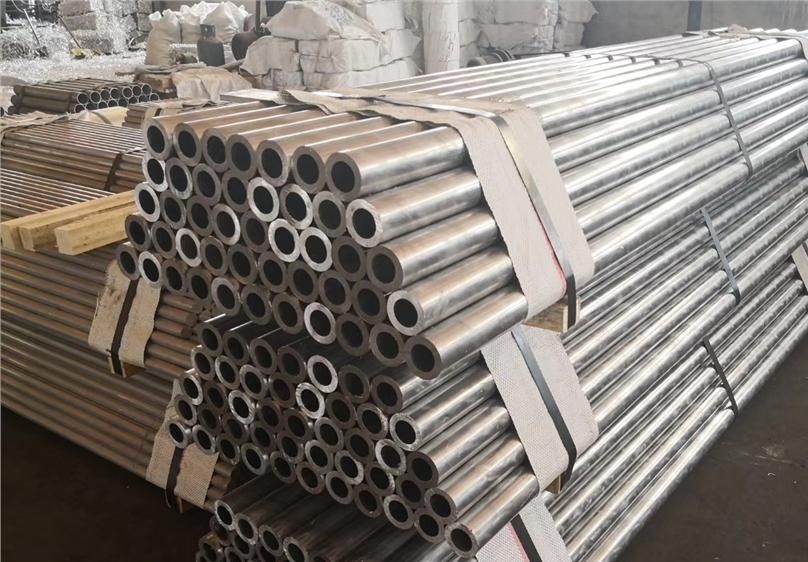

PVDF T6 Aluminum Alloy Round Tube 5mm With High Strength

  • PVDF T6 Aluminum Alloy Round Tube 5mm With High Strength
  • PVDF T6 Aluminum Alloy Round Tube 5mm With High Strength
Place of Origin China
Brand Name TONGMAO
Certification ISO9001 MTC
Model Number steel pipe
Minimum Order Quantity 3tons
Price Negotiable
Packaging Details Standard Packing
Delivery Time 7-15days
Payment Terms L/C, T/T
Supply Ability 1000tons/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. 6061 Thickness 0.15-500mm
Suface Mill Finish , Color Coated(PVDF&PE) Shape Round
Tolerance +-0.01mm Specification Customized
High Light

PVDF Aluminum alloy Tube

,

T6 Aluminum Alloy Round Tube

,

5mm Aluminum Tube High Strength
Leave a Message
Product Description

7075 T6 Aluminum Alloy Round Tube with High Strength Used for Water Heater

7075 is a cold-treated forging alloy with high strength and far better than mild steel. 7075 is one of the most powerful alloys for commercial use. Common corrosion resistance, good mechanical properties and anode reaction. The fine grain size makes the deep drilling performance better, the tool wear resistance is enhanced, and the thread rolling is more different from the weight.
7075 aluminum is called ultra-high strength aluminum alloy. The yield strength of the alloy is close to the tensile strength, the yield ratio is high, and the specific strength is also high, but the plasticity and high temperature strength are lower. It is suitable to use the bearing structure at normal temperature and below 120 °C. The alloy is easy to process, has good corrosion resistance and high toughness. The alloy is widely used in the aerospace and aerospace industries and is one of the most important structural materials in this field.

Material extrusion profile aluminum tube
Temper T5/T6
Purposes Furniture/decorate/industry/construction
Specification thickness: 1mm-20mm
Outer diameter: 35mm-200mm
Length: as your requirement.
Surface treatment Anodized, Anodizing or power sprayed
Features High weather resistance anti scratch anticorrosion and good weather resistance subtle edges and elegant appearance and easy processing and installation high brightness and hardness.
Application aluminum window, door, curtain wall, hand railing, normal aluminum profile, decorative and industrial aluminum profile
Package protection foam heat contracted plastic film, Wooden packing, Metal pallet
OD OD Tolerance ID Tolerance Roundness Straightness Circular run-out
Φ16-20 ±0.02 ±0.02 0.01↓ 0.015↓ 0.05↓
Φ20-30 ±0.02 ±0.02 0.01↓ 0.015↓ 0.05↓
Φ30-50 ±0.05 ±0.05 0.02↓ 0.020↓ 0.08↓
Φ50-80 ±0.15 ±0.10 0.05↓ 0.025↓ 0.10↓

Product Parameters

Physical properties and mechanical properties
Tensile strength
524Mpa
0.2% yield strength
455Mpa
Elongation
11%
Modulus of elasticity E/Gpa
71
1. High strength heat treatable alloy.
2. Good mechanical properties.
3. Good usability.
4. Easy to process and good wear resistance.
5. Good corrosion resistance and oxidation resistance.

Applications of Seamless Aluminium Tube/Pipe
Aluminium seamless tube is used for virtually any type of application, from high pressure and mechanical to architectural and framing, typically used for pressure vessels, hydraulic cylinders, compressed gas cylinders, driveshafts, lighting applications, and bus conductors.
1.Critical pressure ratings
2.Demanding forming applications
3.Critical strength requirement
4.Uniform anodizing appearance
