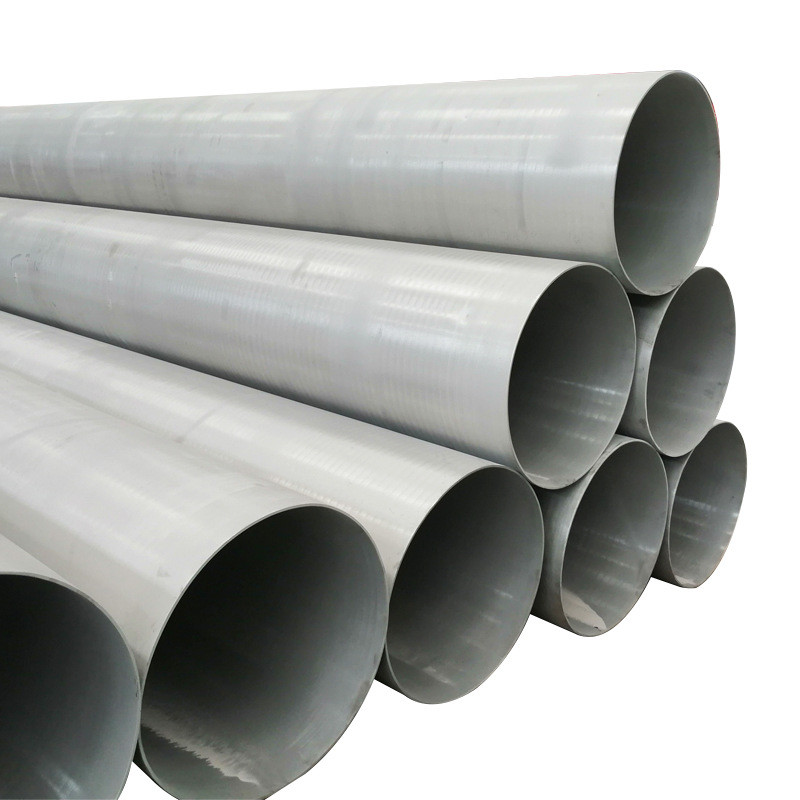

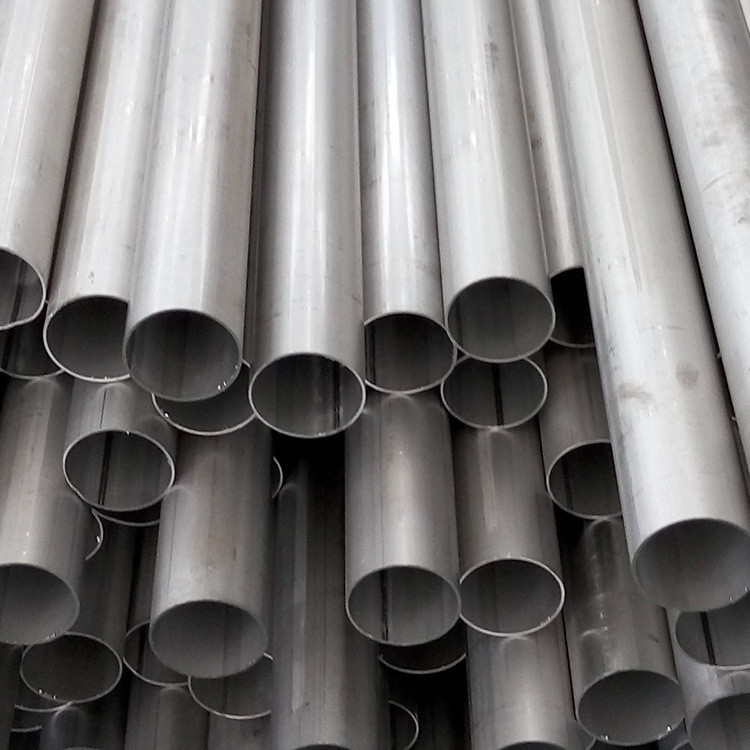

Wall Thick SMLS Stainless Steel Inox Tube 12m 316L Welded Pipe Cold Drawing

Place of Origin China
Brand Name TONGMAO
Certification ISO9001 MTC
Model Number SS Steel Pipes
Minimum Order Quantity 3tons
Price US $1,200-1,800/ Ton
Packaging Details Standard Packing
Delivery Time 7-15days
Payment Terms L/C, T/T
Supply Ability 1000tons/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Seamless Welding Line Type ERW
Surface Treatment Sand Blast Length 5m-12m
Material 201/304/316L Stainless Steel Thickness 2-18mm
High Light

Stainless Steel Inox Tube pipe

,

12m Stainless steel Pipes

,

Stainless Steel Welded Pipe Tube

Leave a Message
Product Description

large diameter wall thick SMLS stainless steel inox tube 201 304 316L welded pipe Cold Drawing

Name
Large diameter 201 304 316L stainless steel welded pipe thick wall industrial welded pipe
Standard
JIS AiSi ASTM GB DIN EN bs
Place of Origin
China

Type
Welded
Steel Grade
300 Series
Welding Line Type
ERW
Tolerance
±1%
Processing Service
Bending, Welding, Decoiling, Punching, Cutting, Moulding
Grade
300 Series
Section Shape
Round
Outer diameter
100mm/1-630mm
Alloy Or Not
Non-Alloy
Surface Finish
2B
Delivery Time
8-14 days
Product name
Stainless Steel Pipe/tube 304pipe Stainless Steel
Shape
Round
Thickness
2-18mm
Application It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture,
and ship components.
It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts,
springs, and screen mesh etc. .
Certification CE, ISO, SGS, BV
Technique Hot rolled or cold drawing
Edge Mill Edge / Slit Edge
Quality SGS Inspection
Grade(ASTM UNS) 201 202 301 304 304L 321 316 316L 317L 347H 309S 310S 904L S32205 2507 254SMOS 32760 253MA N08926 etc.
Grade (EN) 1.4301, 1.4307, 1.4541, 1.4401, 1.4404 ,1.4571, 1.4438, 1.4539, 1.4547, 1.4529, 1.4562, 1.4410, 1.4878, 1.4845, 1.4828, 1.4876,
2.4858, 2.4819
Main market Asia/Europe/ South America
Delivery time Within 7-10 Working Days
Port of Loading Qingdao, China
Price Terms CIF CFR FOB EX-WORK
Export Packing Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package
Supply Ability 5000 Ton/Tons per Month
Payment Terms T/T L/C and Western Union etc.

Is there any difference between 304 and 316 stainless steel tubes?
[1] Brand difference.

304:06Cr19Ni10, 304L: 00Cr19Ni10;

316:0Cr17Ni12MO2, 316L: 00Cr17Ni14Mo2.

[2] Composition differences.
[3] Corrosion resistance difference. In general, 304 stainless steel and 316 stainless steel both in the chemical corrosion resistance performance difference is not big, but in some specific medium. Some of their relationships can be clearly seen in the picture of "relationship between 304 and other stainless steel" shared before. When 304 stainless steel was initially developed, this material was more sensitive to spot corrosion under certain circumstances. To reduce these sensitivities an additional 2-3% of molybdenum was added, resulting in 316 stainless steel. And this extra molybdenum can also reduce the corrosion of certain thermal organic acids. In various types of water quality (distilled water, drinking water, river water, boiler water, etc.), 304 stainless steel and 316 stainless steel corrosion resistance is almost the same, but when the content of chloride ions in the medium is very high, 316 stainless steel is more suitable, specific case specific analysis.
[4] Price difference. Due to the worldwide shortage of molybdenum and the higher nickel content in 316 stainless steel, 316 stainless steel is more expensive than 304. [5] Low carbon type. The corrosion resistance of austenitic stainless steel comes from the protective layer of chromium oxide formed on the metal surface. When the material temperature is heated to 450 degrees - 900 degrees, the structure changes, will form chromium carbide along the crystal edge and can not form chromium oxide protective layer, thus reducing the corrosion resistance, this is also known as "intergranular corrosion". The result is 304L and 316L, which reduce intergranular corrosion due to their low carbon content. In particular, higher intergranular corrosion sensitivity does not mean that non-low carbon content is more susceptible to corrosion, and this sensitivity is also higher in a high chlorine environment.
