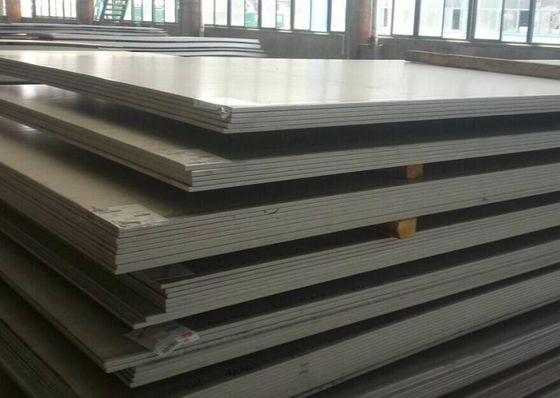

Metal Iron Mill Mild Ms Low High Carbon Steel Sheet Plate Q235 Q345 Hot Cold Rolled

  • Metal Iron Mill Mild Ms Low High Carbon Steel Sheet Plate Q235 Q345 Hot Cold Rolled
Place of Origin China
Brand Name Tongmao
Certification ISO9001
Model Number Carbon Steel Sheet Plate
Minimum Order Quantity 3 Tons
Price Negotiable
Packaging Details Sea Worth Packaging or Client's Request
Delivery Time 5-15 Working Days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 500 Tons - 1 Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. A36 Ss400 SAE1006 Q235 Q345 Material Q235B/Q345b/Ss400/A36/Q345gjb
Quality High Quality.Inspection Special Use Cutting Tools, Cutters In Common Steel
Hardness 40hrb--95hrb Edge Mill Edge
High Light

Building Material Carbon Steel Sheet

,

Q345 Oiled Galvanized Carbon Steel Plate
Leave a Message
Product Description

Q235 Q345 Oiled Galvanized Hot Cold Rolled Metal Iron Mill Mild Ms Low High Carbon Steel Sheet Plate Building Materil

Q235 common carbon structural steel is also called A3 steel.

Common carbon structural steel - plain plate is a kind of steel material.

Q represents the yield limit of this material. The following 235 refers to the yield value of this material, which is about 235MPa. And will increase with the thickness of the material and make its yield value decreased, because of moderate carbon content, good comprehensive performance, strength, plasticity and welding performance is better match, the most widely used.

Products Corten Steel Plate
Standard
grade		 ASTM: Corten A; Corten B; A588Gr.A/Gr.B/Gr.C/ Gr.K; A242; A606 Type 4;
A709 Gr 50W;
EN10025: S235J0W; S235J2W; S355J0W; S355J2W; S355K2W; S355J0WP;
S355J2WP; S355J2G1W; S355J2G2W; S355K2G1W, S355K2G2W;
JIS G3114: SMA400AW; SMA400BW; SMA400CW; SMA490AW; SMA490BW;
SMA490CW; SMA570W; SMA570P;
JIS G3125: SPA-H; SPA-C;
GB/T 4171: Q235NH; Q265GNH; Q310GNH; Q295NH; Q295GNH; Q355NH;Q355GNH;
Q415NH; Q460NH; 1500NH; Q550NH;
TB/T 1979: 09CuPCrNi-A; 09CuCrNi-B; 05CuPCrNi;
Q/BQB 340: B460NQR; B490NQR; B480GNQR; B600GNQR;
Thickness Cold Rolled 0.5-2mm Hot Rolled 2-300mm (2-100mm usually used)
Width 1000-3000mm (1000-2200mm usually used)
Length 1000-12000mm or as your request
Surface Clean, finishing,blasting and painting according to customer requirement
Process Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T,
and other delivery states are available as required
Certificate API,ISO,SGS,BV,CE etc
Quality MTC will be provided with goods, third part inspection is acceptable,
for example BV,SGS.
Package Standard export seaworthy package,suit for all kinds of transport,or as required.
Container Size 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
Trade term Ex-Work,FOB,CNF,CFR,CIF,etc
Application Widely used in a variety of architectural and engineering structures,such as
1.) metal constructions such as buildings,bridges,ships;
2.) transmission tower, reaction tower;
3.) lifting transportation machinery;
4.) industrial furnace;boilers
5.) container frame, warehouse goods shelves, etc

Grade and chemical composition of high quality carbon structural steel:

Item code Grade chemical composition(%)
C Si Mn Cr M Cu
≤
1 U20080 08F O.05～O.11 ≤0.03 0.25～0.50 0.10 O.30 0.25
2 U20100 10F O.07～O.13 ≤O.07 O.25～O.50 O.15 0.30 0.25
3 U20150 15F 0.12～O.18 ≤O.07 0.25～O.50 0.25 0.30 0.25
4 U20082 08 0.05～O.11 O.17～O.37 O.35～O.65 O.10 O.30 O.25
5 U20102 1O 0.07～O.13 0.17～O.37 0.35～0.65 0.15 O.30 O.25
6 U20152 15 O.12～0.18 0.17～O.37 O.35～0.65 O.25 O.30 O.25
7 U20202 20 O.17～0.23 0.17～0.37 0.35～0.65 O.25 O.30 O.25
8 U20252 25 O.22～0.29 0.17～O.37 O.50～O.80 O.25 O.30 0.25
9 U20302 30 O.27～O.34 O.17～O.37 O.50～O.80 0.25 O.30 0.25
10 U20352 35 O.32～0.39 O.17～O.37 O.50～O.B0 0.25 O.30 0.25
11 U20402 40 0.37～O.44 0.17～O.37 O.50～O.80 O.25 O.30 O.25
12 U20452 45 O.42_O.50 O.17～O.37 0.50～0.80 0.25 O.30 0.25
13 U20502 50 0.47～0.55 0.17～O.37 0.50～0.80 0.25 O.30 O.25
14 U20552 55 O.52～0.60 O.17～O.37 O.50～0.80 O.25 0.30 O.25
15 U20602 60 0.57～O.65 0.17～O.37 0.50～O.80 O.25 O.30 0.25
16 U20652 65 O.62～0.70 0.17～0.37 O.50～O.80 O.25 O.30 O.25
17 U20702 70 O.67～0.75 0.17～0.37 O.50～O.80 0.25 O.30 O.25
18 U20752 75 O.72～0.80 0.17～O.37 0.50～0.80 0.25 O.30 O.25
19 U20802 80 O.77～0.85 O.17～0.37 O.50～O.80 0.25 O.30 0.25
20 U20852 85 O.82～0.90 O.17～0.37 0.50～O.80 O.25 O.30 O.25
21 U21152 15№ O.12～O.18 O.17～O.37 O.70～1.00 O.25 O.30 0.25
22 U21202 20Mn 0.17～O.23 O.17～O.37 O.70～1.00 O.25 0.30 O.25
23 U21252 25Mn O.22～O.29 0.17～0.37 O.70～1.00 O.25 O.30 O.25
24 U21302 30Mn 0.27～O.34 O.17～0.37 0.70～1.00 O.25 O.30 0.25
25 U21352 35Mn O.32～O.39 O.17～O.37 O.70～1.00 0.25 O.30 O.25
26 U21402 40Mn O.37～0.44 O.17～0.37 O.70～1.00 0.25 0.30 O.25
27 U21452 45Mn 0.42～0.50 0.17～O.37 0.70～1.00 O.25 O.30 O.25
28 U21502 50Mn O.48～0.56 O.17～O.37 O.70～1.00 0.25 0.30 0.25
29 U21602 60Mn 0.57～0.65 O.17～O.37 0.70～1.00 0.25 0.30 0.25
30 U21652 65Mn 0.62～0.70 0.17～O.37 O.90～1.20 O.25 0.30 0.25
31 U21702 70Mn 0.67～O.75 0.17～0.37 0.90～1.20 O.25 O.30 O.25
