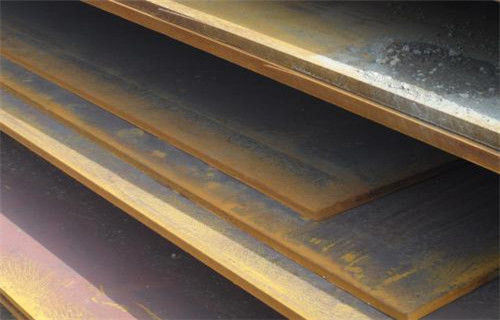

Hot Rolled A36 Q235 Q345 MS Plate Mild Carbon Steel Plate
| Place of Origin | China |
|---|---|
| Brand Name | Tongmao |
| Certification | ISO9001 |
| Model Number | Carbon Steel Sheet Plate |
| Minimum Order Quantity | 3 Tons |
| Price | Negotiable |
| Packaging Details | Sea Worth Packaging or Client's Request |
| Delivery Time | 5-15 Working Days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 500 Tons - 1 Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Q235 | Length | 2~6m |
|---|---|---|---|
| Specification | 0.5mm-4mm X 1219mm X 2438mm | Special Use | High-strength Steel Plate, Wear Resistant Steel |
| Type | Steel Plate,Steel Sheet | Edge | Cutting Edge |
| High Light | Hot Rolled Carbon Steel Plate,A36 Q235 Carbon Steel Sheet |
||
Product Description
Hot Rolled A36 Q235 Q345 Ms Plate Mild Carbon Steel Sheet Plate
| Products | Corten Steel Plate |
| Standard grade |
ASTM: Corten A; Corten B; A588Gr.A/Gr.B/Gr.C/ Gr.K; A242; A606 Type 4; A709 Gr 50W; |
| EN10025: S235J0W; S235J2W; S355J0W; S355J2W; S355K2W; S355J0WP; S355J2WP; S355J2G1W; S355J2G2W; S355K2G1W, S355K2G2W; |
|
| JIS G3114: SMA400AW; SMA400BW; SMA400CW; SMA490AW; SMA490BW; SMA490CW; SMA570W; SMA570P; |
|
| JIS G3125: SPA-H; SPA-C; | |
| GB/T 4171: Q235NH; Q265GNH; Q310GNH; Q295NH; Q295GNH; Q355NH;Q355GNH; Q415NH; Q460NH; 1500NH; Q550NH; |
|
| TB/T 1979: 09CuPCrNi-A; 09CuCrNi-B; 05CuPCrNi; | |
| Q/BQB 340: B460NQR; B490NQR; B480GNQR; B600GNQR; | |
| Thickness | Cold Rolled 0.5-2mm Hot Rolled 2-300mm (2-100mm usually used) |
| Width | 1000-3000mm (1000-2200mm usually used) |
| Length | 1000-12000mm or as your request |
| Surface | Clean, finishing,blasting and painting according to customer requirement |
| Process | Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T, and other delivery states are available as required |
| Certificate | API,ISO,SGS,BV,CE etc |
| Quality | MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS. |
| Package | Standard export seaworthy package,suit for all kinds of transport,or as required. |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) | |
| Trade term | Ex-Work,FOB,CNF,CFR,CIF,etc |
| Application | Widely used in a variety of architectural and engineering structures,such as |
| 1.) metal constructions such as buildings,bridges,ships; | |
| 2.) transmission tower, reaction tower; | |
| 3.) lifting transportation machinery; | |
| 4.) industrial furnace;boilers | |
| 5.) container frame, warehouse goods shelves, etc |
1. Brief introduction of A36 steel plate
ASTM 36 is American standard carbon structural board,
Two, A36 steel plate implementation standards
Comply with ASTM A36/ A36M-03A (equivalent to ASME code)
2. Company: Tongmao
3, A36 steel plate use
This standard applies to riveted, bolted and welded structures used in Bridges and buildings, as well as general purpose structural steel quality carbon steel sections, plates and rods. The yield of A36 steel plate is about 240MP, and the yield value will decrease with the increase of the thickness of the material. Because of the moderate carbon content, the comprehensive performance is better, and the strength, plasticity and welding performance are better matched, and the most widely used.
4. Impact test of A36 steel plate
Charpy V notch specimens were used in the impact toughness test. The impact toughness index is Akv. For grade B, C and D steel, Akv≥27J is required under different temperature requirements. At different impact temperatures, ASTMA36 is American standard carbon structural plate, according to ASTMA36 / a36m-03a standard. The tensile strength of A36 is 58~80 Ksi (about 400~550MPa) and the yield strength is 36 Ksi (about 250MPa).
The tensile strength of Q235 is 370~500 MPa and the yield strength is 235MPa.
The tensile strength and yield strength of SS400 are 400~510 MPa and 245Mpa respectively.
These three materials can often be substituted for each other in real life.
5, A36 steel plate chemical composition:
C: ≤0.25, Si≤0.40, Mn: ≤0.80-1.20, P≤0.04, S: ≤0.05, Cu≥0.20 (when specifying copper containing steel).
6. Mechanical properties:
Yield strength: ≥250.
Tensile strength: 400-550.
Elongation: ≥20.
Gb and A36 material similar is Q235
