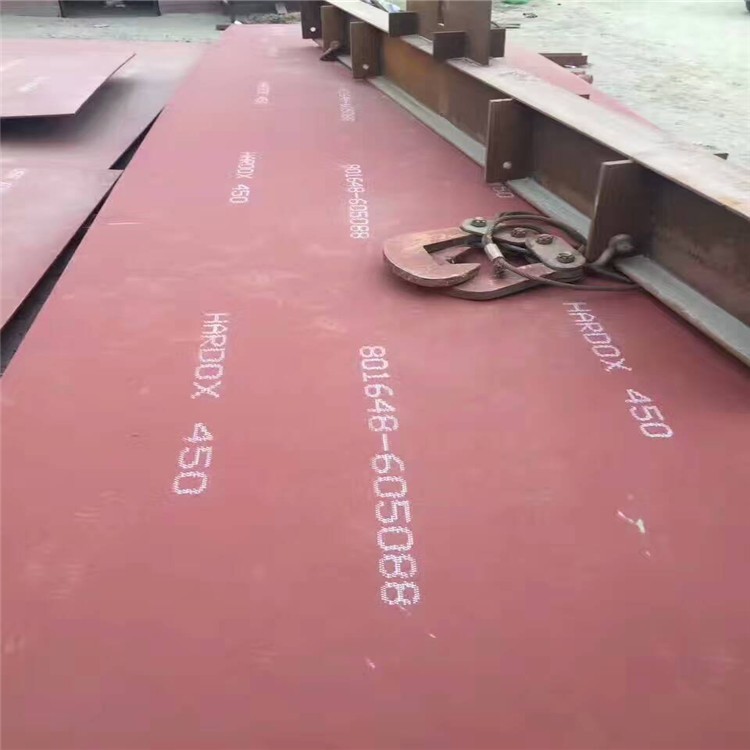

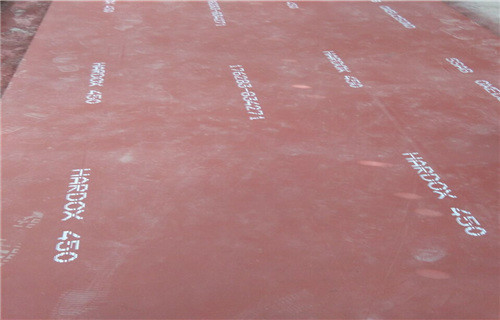

High-strength Steel Plate Hot Rolled 450 Wear Resistance Mild Steel Plate

  • High-strength Steel Plate Hot Rolled 450 Wear Resistance Mild Steel Plate
  • High-strength Steel Plate Hot Rolled 450 Wear Resistance Mild Steel Plate
  • High-strength Steel Plate Hot Rolled 450 Wear Resistance Mild Steel Plate
Place of Origin China
Brand Name TONGMAO
Certification ISO9001 MTC
Model Number Wear Resistance Steel Plate
Minimum Order Quantity 5tons
Price Negotiable
Packaging Details Standard Packing
Delivery Time 7-15days
Payment Terms L/C, T/T
Supply Ability 500tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Special Use Cutting Tools, Measuring Tools, Cutters In Common Steel, Thickness 2mm~150mm
Length 6~12 Meter Width 600-2500mm
Technique Hot Rolled Heat Treatment Tempering ( Quenching + Backing)
High Light

Wear Resistant Steel Plate Nm500

,

Hot Rolled Wear Resistance Steel Plates
Leave a Message
Product Description

High-strength Steel Plate Hot Rolled 450 Wear Resistance Mild Steel Plate

Specifications:

Commodity China Manufacturer Abrasion Resistance Steel Wear Plate NM500/400/360/450/600
Standard Grade DIN : XAR300, XAR400, XAR450, XAR500, XAR600, X120Mn12; 1.3401, etc...
SSAB : WELDOX700, WELDOX900, WELDOX960, etc.
NF : FORA400, FORA500; Creusabro4800, Creusabro8000, etc.
EN : QUARD400, QUARD450, QUARD500; RAEX320, RAEX400, RAEX500, etc.
JIS : JFE-EH360, JFE-EH400, JFE-EH500; WEL-HARD400, WEL-HARD500,etc.
GB : NM360, NM400, NM450, NM500, NM550, NM600, etc.
Thickness 2-300mm(2-100mm usually used)
Width 1000-3000mm(1000-2200mm usually used)
Length 1000-12000mm as your request
Surface clean, finishing, blasting and painting according to your request
Delivery State hot-rolled, controlled rolling, normalizing, annealing, tempering, quenching, N+T, Q+T, and other delivery states as your request

Chemical Composition:
Grade C Si Mn P S Cr Mo Ni B
NM360 ≤ 0.25 ≤ 0.70 ≤ 1.30 ≤ 0.025 ≤ 0.01 ≤ 1.40 ≤ 0.50 ≤ 1.00 ≤ 0.004
NM400 ≤ 0.25 ≤ 0.70 ≤ 1.60 ≤ 0.025 ≤ 0.01 ≤ 1.40 ≤ 0.50 ≤ 1.00 ≤ 0.004
NM450 ≤ 0.26 ≤ 0.70 ≤ 1.60 ≤ 0.025 ≤ 0.01 ≤ 1.50 ≤ 0.50 ≤ 0.08 ≤ 0.004
NM500 ≤ 0.38 ≤ 0.70 ≤ 1.70 ≤ 0.02 ≤ 0.01 ≤ 1.20 ≤ 0.65 ≤ 1.00 0.005-0.006

Physical Performance:
GRADE Physical Performance
Thickness
(mm)		 Y.P
(MPa)		 T.S
(MPa)		 E.L A5
(%)		 HB Strength
°C J/cm2
NM400 3-40 ≥1000 ≥1250 ≥10 360~430 -20 ≥30
NM450 12-40 ≥1250 ≥1500 ≥10 430~480 -20 ≥30
NM500 40-80 ≥1300 ≥1700 ≥10 480~520 -20 ≥30

Wear-resistant plate is steel, and its main components are low-carbon steel plate and alloy wear-resistant layer, of which the alloy wear-resistant layer occupies 1/2~1/3 of the thickness of the entire plate; because the main chemical component is chromium, it can reach The content of all materials is 20%~30%, so its wear resistance is very good.

Second, the characteristics of wear-resistant plates

1. Impact resistance: The impact resistance of the wear-resistant plate is very good. In the process of conveying materials, even if there is a very high drop, it will not cause too much damage to the wear-resistant plate.

2. Heat resistance: Generally, wear plates below 600 degrees can be used normally, but if we add some vanadium and molybdenum when making wear plates, there is no problem at high temperatures below 800 degrees.

3. Corrosion resistance: Because the wear plate contains a large amount of chromium, the corrosion resistance of the wear plate is excellent, and there is no need to worry about corrosion.

4. Cost-effectiveness: The price of wear-resistant plates is 3~4 times that of ordinary steel plates, but the service life of wear-resistant plates is more than 10 times longer than that of ordinary steel plates, so its cost-effectiveness is relatively high.

5. Convenient processing: The weldability of the wear-resistant plate is very strong, and it can also be easily bent into various shapes, which is very convenient to process.
