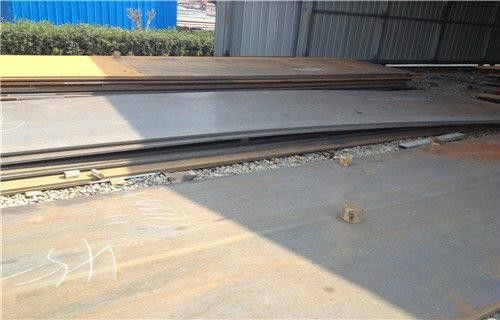

Slit Edge Industrial Black Carbon Steel Sheet Nm360 Nm400 Wear Resistant

  • Slit Edge Industrial Black Carbon Steel Sheet Nm360 Nm400 Wear Resistant
  • Slit Edge Industrial Black Carbon Steel Sheet Nm360 Nm400 Wear Resistant
Place of Origin China
Brand Name TONGMAO
Certification ISO9001 MTC
Model Number Wear Resistance Steel Plate
Minimum Order Quantity 5tons
Price Negotiable
Packaging Details Standard Packing
Delivery Time 7-15days
Payment Terms L/C, T/T
Supply Ability 500tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Surface Treatment Coated Main Hardness 400hb 450hb 500hb
Thickness 3mm-80mm Service Cutting
Hardness Range 360hb-600hb Stock Stock
High Light

Slit Edge Carbon Steel Sheet

,

Nm400 Wear Resistant Steel Sheet
Leave a Message
Product Description

Slit Edge Industrial Black Steel Plate Nm360 Nm400 Wear Resistant Carbon Steel Sheet

1. Production Process
1) Steelmaking process Flow Chart
Blast Furance+Hot Metal Ladle Truck+KR Hot Metal Treatment+Converter+LF Refining Furnace+RH Vacuum Degassing Furance+Con-cast
2. Rolling Process Flow Chart
Reheating Furance+High-pressure Water Descaling+Edger Mill+Roughing Mill+Finishing Mill+Accelerated cooling+Hot Leveler+Marking and Spray Printing+Cooling Bed+On-line UT+Crop Shear+Double-side Trimming Shear+Cut-to-length Shear+Measurement+Marking and Spray Printing+Cold Leveler/Heat treatment
3. Heat-Treatment Flow Chart
Plate+Shot Blasting+Quenching Furance+Quenching Machine+Tempering Furance+Warm Leveler+Cooling Bed+Cutting+Cold Leveler+Finishing&Packaging
4. Thickness and Width
Thickness:3mm-150mm
Width:1600mm-4100mm
5. Main Grade
Germany:XAR400,XAR450,XAR500,XAR600,Dillidur400,Dillidur500
Belgium:QUARD400,QUARD450,QUARD500
France:FORA400,FORA500,Creusabro4800,Creusabro8000
Baosteel:B-HARD360,B-HARD400,B-HARD450,B-HARD500
HBIS:NM360,NM400,NM450,NM500
Finland:RAEX400,RAEX450,RAEX500
Japan:JFE-EH360,JFE-EH400,JFE-EH500,WEL-HARD400,WEL-HARD500
6. Chemical Composition&Property
Grade c Si Mn P S Al Cr+Ni+Mo Nb+V+Ti
NM400 0.10-0.40 0.20-0.40 1.00-2.00 Max 0.015 Max 0.003 Min 0.020 Max 0.9 Trace Amount
NM450 0.10-0.40 0.20-0.40 1.00-2.00 Max 0.015 Max 0.003 Min 0.020 Max 1.2
NM500 0.10-0.40 0.20-0.45 1.00-2.00 Max 0.015 Max 0.003 Min 0.020 Max 1.5
NM550 0.10-0.50 0.20-0.45 1.00-1.50 Max 0.015 Max 0.003 Min 0.020 Max 2.0
NM600 0.10-0.50 0.20-0.45 1.00-1.50 Max 0.015 Max 0.003 Min 0.020 Max 2.5
XCHD400 0.10-0.30 0.20-0.40 1.00-2.00 Max 0.015 Max 0.003 Min 0.020 Max 0.1
XCHD450 0.10-0.40 0.20-0.40 1.00-2.00 Max 0.015 Max 0.003 Min 0.020 Max 0.9
XCHD500 0.10-0.40 0.20-0.45 1.00-2.00 Max 0.015 Max 0.003 Min 0.020 Max 1.5

Application:
1) Thermal power plant: lining plate of medium speed pulverizer barrel, impeller shell of fan, inlet flue of dust remover, ash duct, lining plate of bucket wheel, connecting pipe of separator, lining plate of coal crusher, lining plate of coal hopper and crusher, burner burner nozzle, lining plate of coal hopper and funnel, air preheater support, guide vane of separator. The above parts have no high requirements for the hardness and wear resistance of the wear-resistant steel plate. The wear-resistant steel plate with the material of NM360 / 400 and the thickness of 6-10 mm can be used.
2) Coal Yard: feed chute and hopper lining, hopper lining, fan blade, pusher bottom plate, cyclone dust collector, coke guide lining, ball mill lining, bit stabilizer, screw feeder bell and base, Kneader bucket lining, ring feeder, tipper bottom plate. The working environment of the coal yard is very bad, so it has certain requirements for the corrosion resistance and wear resistance strength of the wear-resistant steel plate. It is recommended to use the nm400 / 450 wear-resistant steel plate with a thickness of 8-26mm.
