4mm-12mm Ar400 400 Nm 400, 450, 500 Wear Resistant Steel Plate

  • 4mm-12mm Ar400 400 Nm 400, 450, 500 Wear Resistant Steel Plate
  • 4mm-12mm Ar400 400 Nm 400, 450, 500 Wear Resistant Steel Plate
Place of Origin China
Brand Name TONGMAO
Certification ISO9001 MTC
Model Number steel plate
Minimum Order Quantity 10tons
Price Negotiablle
Packaging Details Standard Packing
Delivery Time 7-15days
Payment Terms L/C, T/T
Supply Ability 500tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASTM,AISI,JIS,GB,DIN Length 1-12m
Grade Ar400 400 Nm 400, 450, 500 Width 100-300cm Or Customized
Thickness 4MM-12MM Name Abrasion Resistant Steel Plate
High Light

Q345 abrasion resistant steel plate

,

Q390 abrasion resistant steel plate

,

JFE EH 360 abrasion resistant metals
Leave a Message
Product Description

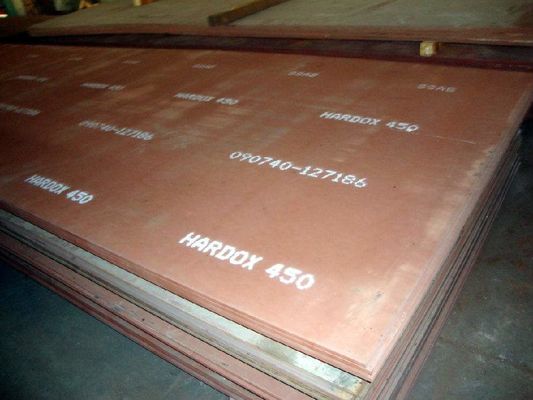

4mm-12mm Ar400 400 Nm 400, 450, 500 Wear Resistant Steel Plate

NM series is a high-strength wear resistant steel plate with high hardness. The Brinell hardness value from 470 to 525 (HBW), and mainly to provide protection in the occasion or part where wear resistance is required, so that the equipment life is longer and the maintenance is reduced.

NM400 is a high-strength wear-resistant steel plate. NM400 has quite high mechanical strength; its mechanical properties are 3 times to 5 times that of ordinary low-alloy steel plates; it can significantly improve the wear resistance of mechanical-related components; thus increase the service life of machinery; reduce production costs. The surface hardness of this product usually reaches 360～450HB. Structural steel plates suitable for the processing and manufacturing of wear-resistant and wearing parts for mines and various construction machinery.

4mm-12mm Nm 400, 450, 500 Wear Resistant Steel Plate

4mm-12mm Nm 400, 450, 500 Wear Resistant Steel Plate

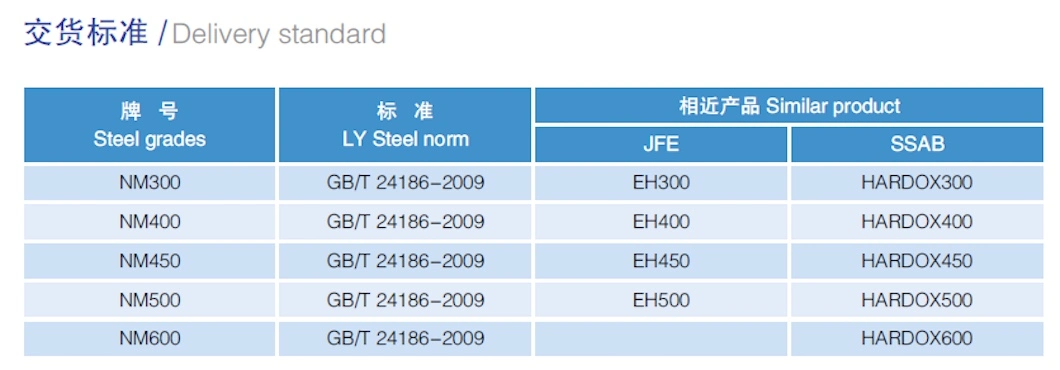

Country AR Sweden China Germany
Standard AR GB/T XAR
Grade AR400 400 NM400 XAR400



Grade C Si Mn≤ P≤ S≤ Cr≤ Mo≤ Ni≤
AR400 0.12-0.16 0.35-0.55 1.55 0.025 0.005 0.55 0.55 1.0
NM400 0.20 0.70 1.6 0.025 0.01 1.4 0.5 1.0

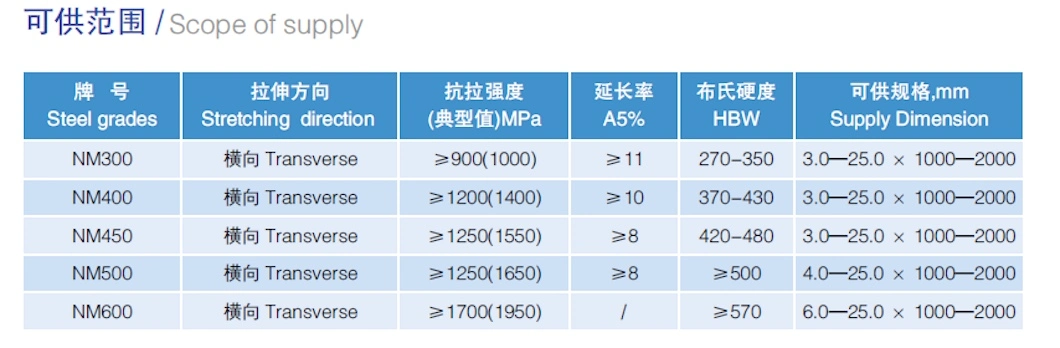

Grade Yield Strength Tensile Strength Elongation A Hardness
AR400 1000 Mpa 1250 Mpa 10 360-480 HB


5: AR400 steel overviews

Size Plate/Flat/Block Thickness
3mm-100mm
Width
100mm-2500mm
Heat treatment Q+T
Surface condition Black;
Delivery condition Hot rolled;
Test Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness
Payment terms T/T;L/C;/Money gram/ Paypal
Trade terms FOB; CIF; C&F; etc..
Delivery time 30-45 days
Application Abrasion resistant steel is used in areas where there is likely to be a high degree of abrasion or wear of the steel plate. Typical applications are in truck beds, attachments to diggers and earth movers and in processing applications in the mining industry.
The key quality for wear resistant steels is their hardness. We sell wear plate according to its hardness measured on the Brinnell Hardness Test- usually in 400HB grades.

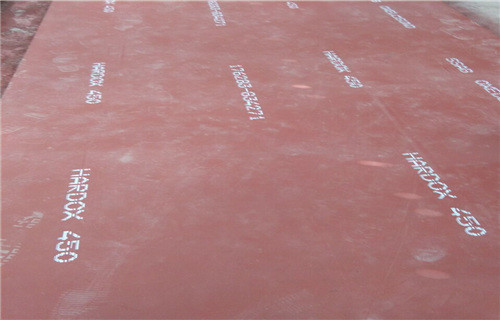

 4mm-12mm Ar400 400 Nm 400, 450, 500 Wear Resistant Steel Plate 2
