Q235 S235J2 SS400 SCH10s Hot Dipped Galvanized Steel Pipe 2.75mm Scaffolding Tube

Place of Origin China
Brand Name Tongmao
Certification ISO/SGS
Model Number Hot Dipped Galvanized Steel Pipe
Minimum Order Quantity 5 TONS
Price Negotiable
Packaging Details Sea Worth Packaging or Client's Request.
Delivery Time 5-8 Working Days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 500 TONS - 1 Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applicable Industries Food & Amp, Beverage Factory, Food Shop, Manufacturing Plant, Restaurant, Hotels Product Name Hot Dipped Galvanized Steel Pipe
Standard ASTM, AISI, JIS, EN, GB, API, DIN Grade A123, S185, Q215, SS330, SPHC, Q235, SS400, S235JR, S235JO, S235J2, Q345, SS500, ST52
Alloy Or Non-Alloy Alloy Thickness 0.5mm ~ 2.75mm, SCH10S, SCH40S, STD, XS, SCH80, SCH160
High Light

SS400 SCH10s Hot dipped Galvanized Steel Pipe

,

SCH10s SS400 alloy steel pipes 2.75mm

,

SCH10s 2.75mm galvanized scaffolding tube

Leave a Message
Product Description

PRODUCT OVERVIEW





China Factory Direct A123 Alloy Hot dipped Galvanized Steel Pipe

Galvanizing can increase the corrosion resistance of steel pipes and prolong their service life. Hot dip galvanized steel pipes are widely used in construction, machinery, coal mining, chemical industry, electric power, railway vehicles, automobile industry, highways, bridges, containers, sports facilities, agricultural machinery, petroleum machinery, exploration machinery and other manufacturing industries.



Product description

Size OD(Outer Diameter) 15mm-168mm)
WT(Wall Thickness) 0.5-2.75mm.
SCH10s,SCH40s,STD,XS,SCH80,
SCH160,XXS etc.
ZINC COATED 1)Pre-galvanized steel pipe:Z40-80g/m2
2)Hot dip galvanized steel pipe:Z200-520g/m2
Material Q195 → Grade B, SS330,SPHC, S185
Q215 → Grade C,CS Type B,SS330, SPHC
Q235 → Grade D,SS400,S235JR,S235JO,S235J2
Q345 → SS500,ST52
Standard BS1387,EN10297,BS6323,BSEN10217,GB/T13793-1992,
GB/T14291-2006,GB/T3091-1993,GB/T3092-1993,GB3640-88,
ASTM A53/A36,EN39/EN10219,API 5L,GB/T9711.1-99 etc
Section shape Round/Square/Rectangular
Type Welded Pipe
Technique Electronic Resistance Welded (ERW )
Electronic Fusion Welded (EFW)
Double Submerged Arc Welded (DSAW)
Welded Line Type Longitudinal
Ends 1)Plain2)Beveled3)Thread with Coupling or cap
End protector 1) Plastic pipe cap2) Iron protector
Surface Treatment 1) Bared
2) Black Painted (varnish coating)
3) Galvanized
4) With Oiled
5) 3 PE, FBE, corrosion resistant coating
Inspection With Hydraulic Testing, Eddy Current , Infrared Test
Class A test pressure 4.83MPa-13.10Mpa


Detailed photos

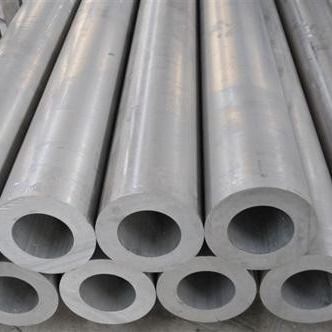

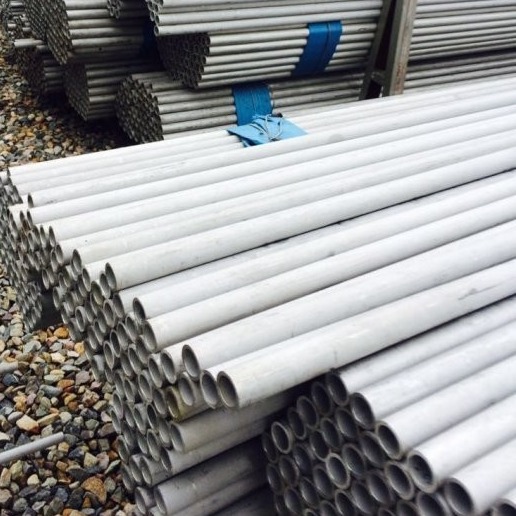

Hot Dipped Galvanized Steel Pipe 2 Inch Schedule 40 Galvanized Mild Steel Pipe Tube 0Hot Dipped Galvanized Steel Pipe 2 Inch Schedule 40 Galvanized Mild Steel Pipe Tube 1

Product parameters



The process flow is as follows:

black tube - alkali washing - water washing - acid pickling - rinsing with clean water - Leaching additives - drying - hot dip galvanizing - External blowing - internal blowing - air cooling - water cooling - passivation - water rinsing - Inspection - weighing - warehousing.
Hot Dipped Galvanized Steel Pipe 2 Inch Schedule 40 Galvanized Mild Steel Pipe Tube 2
Packing and shipping




Hot Dipped Galvanized Steel Pipe 2 Inch Schedule 40 Galvanized Mild Steel Pipe Tube 3
Hot Dipped Galvanized Steel Pipe 2 Inch Schedule 40 Galvanized Mild Steel Pipe Tube 4
