309 Cr 22 76 To 820mm Large Diameter Welded Steel Pipes JIS ASTM A554

Place of Origin China
Brand Name TONGMAO
Certification ISO9001 MTC
Model Number steel pipe
Minimum Order Quantity 5tons
Price US $1,000-3,000/ Ton
Packaging Details Standard Packing
Delivery Time 7-15days
Payment Terms L/C, T/T
Supply Ability 1000tons/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASTM,AISI,JIS,GB,DIN Length 6-12m
Grade ASTM A554, 309 Outer Diameter 76-220mm
Wall Thickness 0.4mm-3.0mm Name Welded Steel Pipe
High Light

309 820mm Large Diameter Welded Steel Pipes

,

welded steel tube ASTM A554

,

JIS large diameter welded steel pipes

Leave a Message
Product Description

309 Cr 22 76 To 820mm Large Diameter Welded Steel Pipes JIS ASTM A554

Welded steel pipe:

Welded steel pipe refers to steel strip or steel plate bending deformation into circular, square and other shapes after welding, the surface of the joint steel pipe. Compared with seamless steel tube, welded steel tube has low cost and high production efficiency. The blank is steel plate or strip steel. Welded steel tube has good corrosion resistance in acid environment.

Classification of welding methods:
According to different welding methods, it can be divided into arc welding pipe, high frequency or low frequency resistance welding pipe, gas welding pipe, furnace welding pipe, bandi pipe, etc.

Electric welded steel tube: used for oil drilling and machinery manufacturing.

Furnace welding pipe: can be used as water gas pipe, straight welded pipe for high pressure oil and gas transmission; Spiral welded pipe is used for oil and gas transportation, pipe pile, bridge pier and so on.

Classification according to weld shape
Can be divided into straight seam welding pipe and spiral welding pipe.



Product Description​:

Grade Compositionnominal wt% Elongation % Hardness
301 Annealed 1/4H 1/2H FH C .15, Mn 2.0, P .045, S 0.3, Si .75, Cr 16-18, Ni 6-8, N .1 40 95 Rb
302 C 0.15, Mn 2.0, P .045, S .03, Si .75 Cr 17-19, Ni 8-10, N .1 40 92 Rb
303 C 0.15, Mn 2.0, P .045, S .03, Si .75 Cr 17-19, Ni 8-10, N .1 30-50 92 Rb
304 C .08, Mn 2.0, P .045, S .03, Si .75 Cr 18-20, Ni 8-10.5, N .10 40 92 Rb
304L C .03, Mn 2, P .045, S .03, Si .75, Cr 18-20, Ni 8-12, N .1 40 92 Rb
305 C .12, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 10.5-13, 40 88 Rb
309/309S Type 309 - C .2, Mn 2.0, P .045, S.03, Si .75 Cr 22-24, Ni 12-15, Fe bal Type 309S - C .08, Mn 2.0, P .045, S .03, Si. 75, Cr 22-24, Ni 12-15, Fe Bal 49/ 44.6 -
310L Mn 1.10, Cr 24.5, Ni 20.5 (nominal) 40 95 Rb
310 310S 310: C .25, Mn 2, P 0.045, S 0.03, Si 1.5, Cr 24-26, Ni 19-22, Fe balance 310S: C 0.08, Mn 2, P 0.045, S 0.30, Si 1.5, Cr 24-26, Ni 19-22, Fe balance 45/42/6 -
316 C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N .1, Fe Bal 40 95 Rb
316L C .03, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N 0.1, Fe Bal 54 95 Rb
316Ti C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P 0.045, S 0.03, N 0.1, Ti 0.15-0.70, balance Fe 248 76 Rb
317 Type 317 - C .08, Mn 2.0, Si .75, Cr 18-20, Ni 11-15, Mo 3-4, P .045, S .03, N .10, Fe Bal 35 95 Rb

 Pictures show:

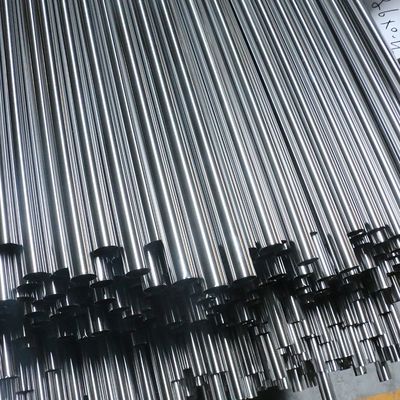

309 Cr 22 76 To 820mm Large Diameter Welded Steel Pipes JIS ASTM A554 0

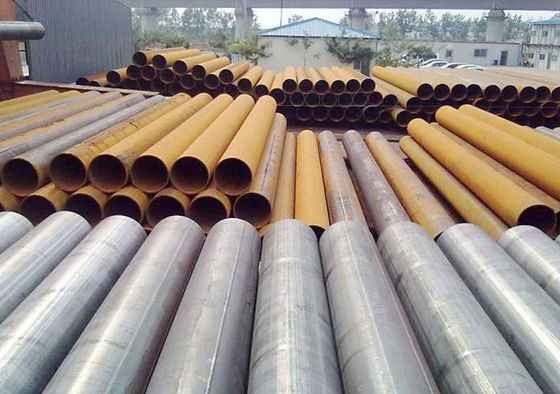

309 Cr 22 76 To 820mm Large Diameter Welded Steel Pipes JIS ASTM A554 1
