ASTM B280 C12200 Soft Copper Pipe TP2

  • ASTM B280 C12200 Soft Copper Pipe TP2
  • ASTM B280 C12200 Soft Copper Pipe TP2
Place of Origin China
Brand Name Tongmao
Certification ISO9001, MTC
Model Number Soft copper tube
Minimum Order Quantity 500KGS
Price Negotiable
Packaging Details Coil with plastic in carton packing
Delivery Time 7-15days
Payment Terms T/T, L/C
Supply Ability 500TONS ONE MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Soft Copper Pipe Cu (min) 99.99%, According To The Material
Application Air Condition Or Refrigerator, Water Heater, Aircon Systems, Oil Cooler Pipe, Refrigeration Parts Surface Bright, Copper
Color Red Thickness 1/4"-7/8"
Material C1100 C12200 Length 15m 50m
Highlight

ASTM B280 soft copper pipe

,

C12200 soft copper pipe

,

TP2 soft copper tubing
Leave a Message
Product Description

ASTM B280 Soft Copper Pipe Nickel Tube Pancake Coil 2mm Seamless Copper Pipe For Air Condition

ASTM B280 Soft Copper Pipe Nickel Tube Pancake Coil 2mm Seamless Copper Pipe For Air Condition

Soft copper pipe nickel tube pancake coil are widely used in Air Condition Or Refrigerator, Water Heater, Aircon systems, Oil cooler pipe, Refrigeration Parts.

Produced in the following size ranges:
Min. Diameter: 1/4"
Max. Diameter: 7/8"
Lengths: Standard available lengths are 15m, 50FT

Coils are capped with plastic end caps.



PRODUCT DESCRIPTION



Temper soft annealed coiled copper tube

  • Size ranges:
    Min. Diameter: 3/16" (4.76mm)
    Max. Diameter: 7/8" (22.22mm)
  • Lengths: Standard available lengths are 15m, 30m, 50FT
  • Material : C11000, C12200, T2, TP2, TU2
  • Usages: installation of air conditioning and refrigeration systems
  • Cu: min 99.99%
  • Coils are capped with plastic end caps
  • Standard: ASTM B 280 / EN 12735-1 and ASTM B68 and all relevant international standards


DETAILED PHOTOS

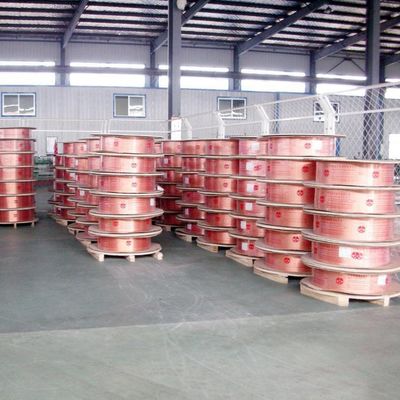

ASTM B280 C12200 Soft Copper Pipe TP2 0

PRODUCT PARAMETERS


Size Range:

Actual Copper Tube Size
Outside Diameter x Wall Thickness		 Weight
(kg/m)		 e Working Pressure (kPa)
metric (mm) imperial (inches) 50ºC 75ºC
6.35 x 0.56 1/4" x 24swg 0.091 7,069 5,862
6.35 x 0.61 1/4" x 23swg 0.098 7,760 6,435
6.35 x 0.71 1/4" x 22swg 0.113 9,175 7,608
6.35 x 0.81 1/4" x 21swg 0.126 10,635 8,819
9.52 x 0.56 3/8" x 24swg 0.141 4,584 3,801
9.52 x 0.61 3/8" x 23swg 0.153 5,018 4,161
9.52 x 0.71 3/8" x 22swg 0.176 5,900 4,893
9.52 x 0.81 3/8" x 21swg 0.198 6,800 5,639
12.70 x 0.56 1/2" x 24swg 0.191 3,389 2,810
12.70 x 0.61 1/2" x 23swg 0.207 3,705 3,072
12.70 x 0.71 1/2" x 22swg 0.239 4,344 3,603
12.70 x 0.81 1/2" x 21swg 0.271 4,994 4,141
15.88 x 0.56 5/8" x 24swg 0.241 2,688 2,229
15.88 x 0.61 5/8" x 23swg 0.262 2,936 2,435
15.88 x 0.71 5/8" x 22swg 0.303 3,438 2,851
15.88 x 0.81 5/8" x 21swg 0.343 3,945 3,270
15.88 x 0.91 5/8" x 20swg 0.383 4,459 3,698
15.88 x 1.02 5/8" x 19swg 0.426 5,031 4,172
19.05 x 0.56 3/4" x 24swg 0.291 2,228 1,848
19.05 x 0.71 3/4" x 22swg 0.336 2,846 2,360
19.05 x 0.91 3/4" x 20swg 0.464 3,684 3,055
19.05 x 1.14 3/4" x 0.045" 0.574 4,668 3,871
22.22 x 0.91 7/8" x 20swg 0.545 3,138 2,602
22.22 x 1.14 7/8" x 0.045" 0.675 3,970 3,292
22.22 x 1.40 7/8" x 0.055" 0.819 4,929 4,088


PACKING AND SHIPPING


- Plastic Bag Packing
- Carton Packing (with drier)
- Wooden Pallet
- Plastic Film Packing

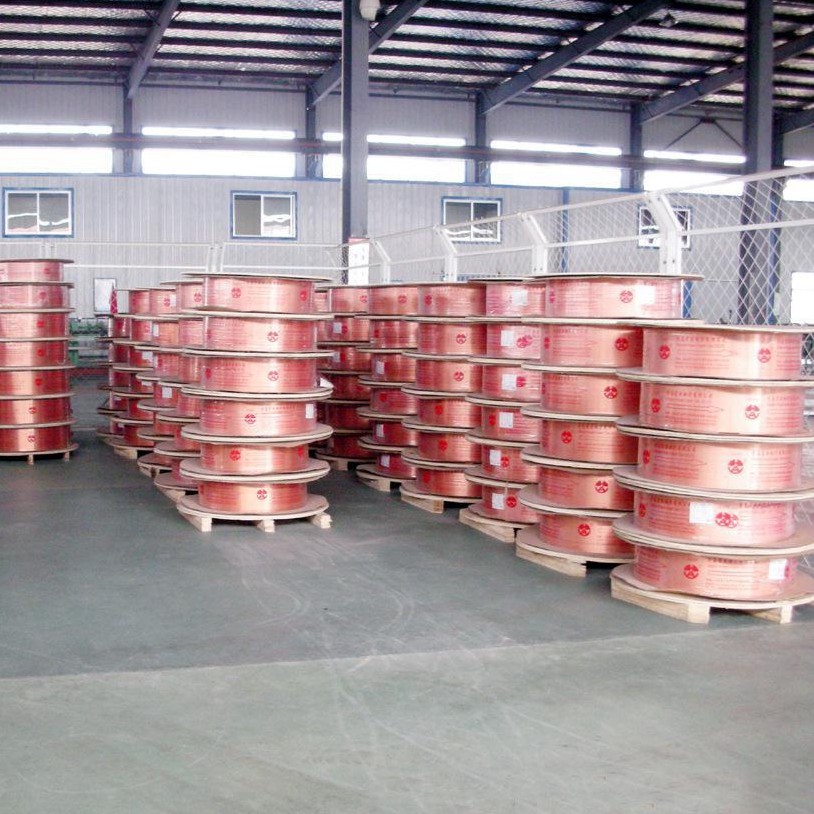

ASTM B280 C12200 Soft Copper Pipe TP2 1






FAQ

How can I contact with your company?
We are always ready to serve you via Email, Wechat or Mobile telephone.


What is your working time?
Monday-Saturday : 8:00AM-17:30PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . For detail,
please see our update holiday notice. During these period, if you have a demand, Please
send me an email.

Do you provide free samples?
Yes, we can provide a free small sample for testing, buyer should bear all the shipping costs.

What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
We are doing the best to match your demand.

What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
Normal order is 10-30days,it depends on customers' quantity.
Anyway,we try to offer good-quality products as soon as possible.

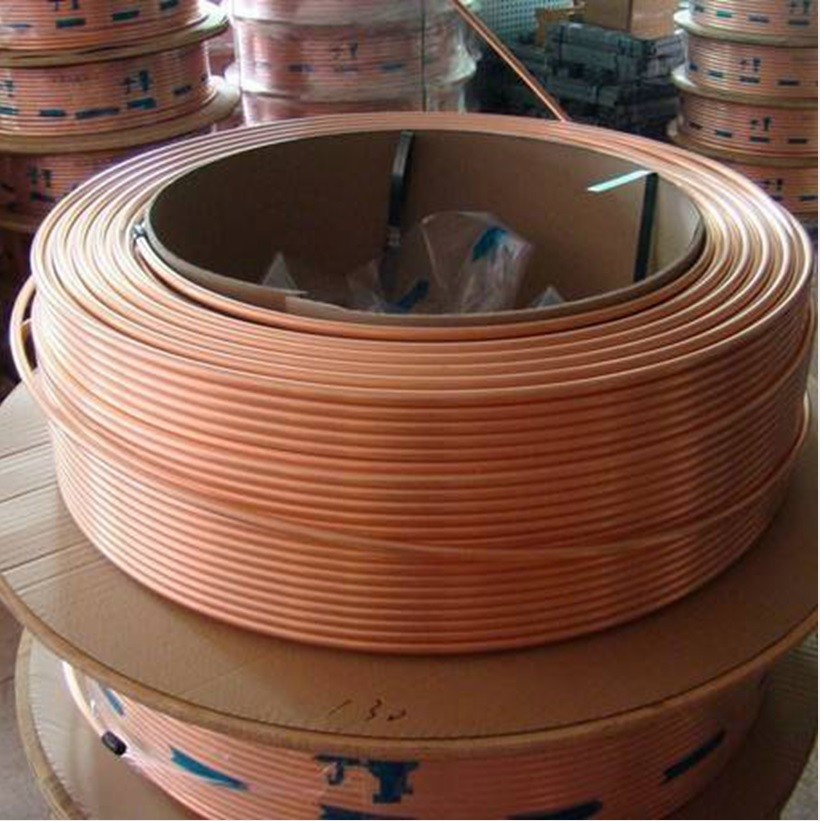

ASTM B280 C12200 Soft Copper Pipe TP2 2
