ODM TP304 304L SS Welded Pipe B36.19 Polished Stainless Steel Pipes

  • ODM TP304 304L SS Welded Pipe B36.19 Polished Stainless Steel Pipes
  • ODM TP304 304L SS Welded Pipe B36.19 Polished Stainless Steel Pipes
  • ODM TP304 304L SS Welded Pipe B36.19 Polished Stainless Steel Pipes
Place of Origin China
Brand Name Tongmao
Certification ISO9001 MTC
Model Number stainless steel pipe
Minimum Order Quantity 3tons
Price Negotiable
Packaging Details standard export packing
Delivery Time 7-15days
Payment Terms L/C, T/T
Supply Ability 200TONS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Stainless Steel Pipe Steel Grade 304 304L
Outer Diameter 10-520MM Thickness Sch10
Length 5-12000mm Or Customized Surface 2B BA Polish
Standard ASTM A312 Application Construction, Decoration, Industry, Machine Building, Exhaust
High Light

304L ss welded pipe

,

ss welded pipe OEM

,

ASME B36.19 polished stainless steel pipe
Leave a Message
Product Description

ASTM A312 TP304/304L Stainless Steel Welded Industry Round Pipe B36.19



304 stainless steel is a common material in stainless steel, with a density of 7.93 g / cm ³, High temperature resistance of 800 ℃, with the characteristics of good processing performance and high toughness, it is widely used in industry, furniture decoration industry and food and medical industry. 304 stainless steel is food grade stainless steel recognized by the state



Product description



Commodity Name Stainless steel pipe
Type Welded
Standard ASTM A312
Material 304 304L
Outer Diameter 10-520MM
Wall Thickness Sch10
Length 5-12000mm or customize
Tolerance OD±1% WT±5% or as per customers’ request
Surface

2B BA polish

Packing

Bundle packing
Beveled end or pained
Marking as customers’ request
Plastic caps at ends
Wooden box packing

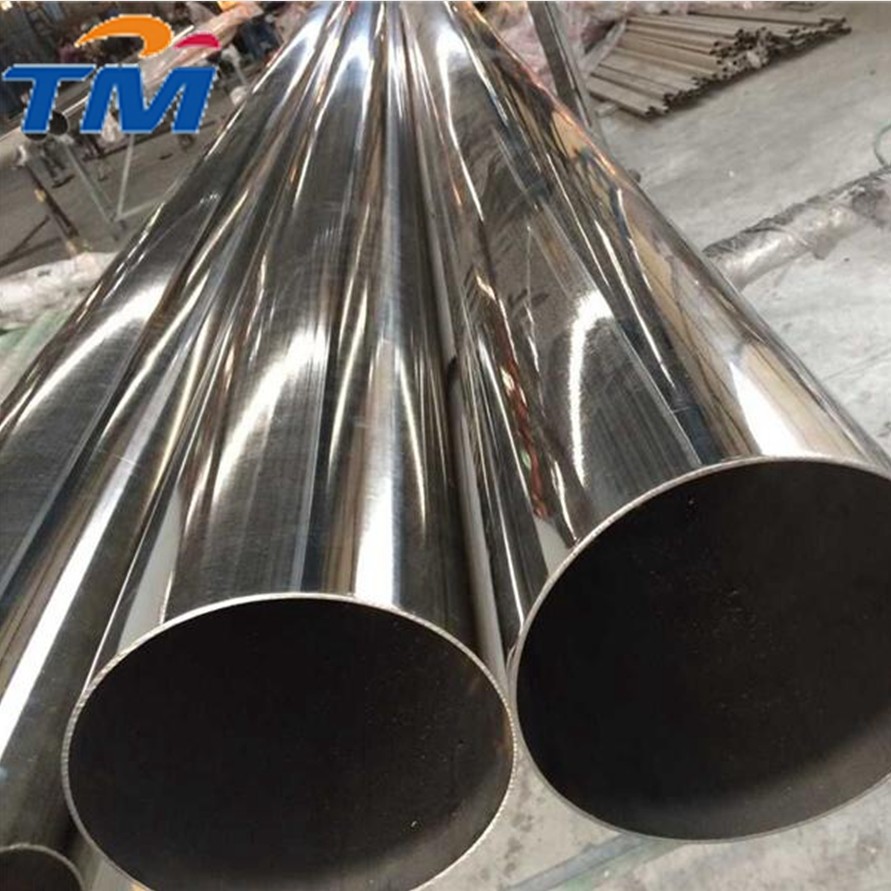

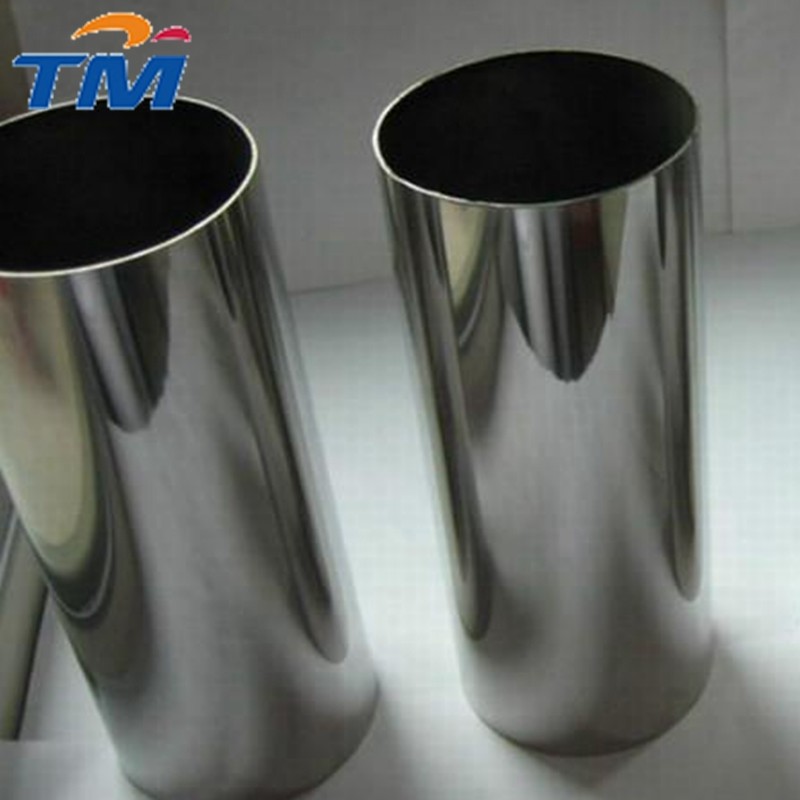

Detailed photos

ODM TP304 304L SS Welded Pipe B36.19 Polished Stainless Steel Pipes 0

Product parameters



Chemical Composition

Grade C≤ Si≤ Mn≤ P≤ S≤ Ni Cr
201 0.12 0.75 7.00 0.035 0.030 3.5-5.5 16.0-18.0
202 0.15 1.00 2.25 0.035 0.030 4.0-6.0 17.0-19.0
304 0.08 0.75 2.00 0.035 0.030 8.0-10.0 17.0-19.0
304L 0.035 0.75 2.00 0.035 0.030 8.0-10.0 18.0-20.0




Tensile strength σ b (MPa)≥515-1035

Conditional yield strength σ 0.2 (MPa)≥205

Elongation δ 5 (%)≥40

Reduction of area ψ (%)≥?

Hardness: ≤ 201hbw; ≤92HRB; ≤210HV

Density (20 ℃, g / cm) ³): seven point nine three

Melting point (℃): 1398 ~ 1454

Specific heat capacity (0 ~ 100 ℃, kJ · kg-1k-1): 0.50

Thermal conductivity (w · M-1 · k-1): (100 ℃) 16.3, (500 ℃) 21.5

Linear expansion coefficient (10-6 · k-1): (0 ~ 100 ℃) 17.2, (0 ~ 500 ℃) 18.4

Resistivity (20 ℃, 10-6 Ω· m2 / M): 0.73

Longitudinal elastic modulus (20 ℃, kn / mm2): 193



NO
Standard
C
Mn
P
S
Si
Cr
Ni
N
Cu
1
ASTM A276/A276M-15
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-11.0

2
ASTM A959-11
0.07
2.00
0.045
0.030
1.00
17.5-19.5
8.0-11.0

3
ASTM A240/A240M-15a
0.07
2.00
0.045
0.030
0.75
17.5-19.5
8.0-10.5

4
ASTM A182/A182M-15
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-11.0
0.10

5
ASTM A193/A193M-15
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-11.0

6
ASTM A269/A269M-15
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-11.0

7
ASTM A312/A312M-15a
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-11.0

8
ASTM A320/A320M-15a
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-11.0

9
ASTM A403/A403M-15
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-11.0

10
ASTM A493-09(2013)
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-10.5
0.10
1.00
11
ASTM A554-15a (MT-304)
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-11.0

12
JIS G4303:2012
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-10.5

13
JIS G4304:2012
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-10.5

14
JIS G4305:2012
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-10.5

15
GB/T 20878-2007
0.08
2.00
0.045
0.030
1.00
18.0-20.0
8.0-11.0
