Oil Cooler Red Brass 15mm Soft Copper Pipe EN 12735 C12000 Mill Surface
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Soft Seamless Copper Pipe | Cu (min) | 99.993%, According To The Material |
|---|---|---|---|
| Application | Air Condition Or Refrigerator, Water Heater, Aircon Systems, Oil Cooler Pipe, Refrigeration Parts | Surface | Bright, Copper |
| Color | Red | Thickness | 19-24swg |
| Material | C1100 C12200 TP2 | Length | 5-15m |
| High Light | Mill Surface 15mm soft copper pipe,C12000 red brass pipe,EN 12735 copper alloy pipe |
||
Product Description
ASTM B280 C12000 Copper Alloy Red Tube Copper Pipes For Refrigerator
Temper soft annealed coiled copper tube
- Size ranges:
Min. Diameter: 6.35mm
Max. Diameter: 22.22mm - Lengths: Standard available lengths are 5-15m
- Material : C11000, C12200, T2, TP2
- Usages: installation of air conditioning and refrigeration systems
- Cu: min 99.993%
- Coils are capped with plastic end caps
- Standard: ASTM B 280 / EN 12735-1 and ASTM B68 and all relevant international standards
PRODUCT DESCRIPTION
| Application | Air Condition Or Refrigerator, Water Heater, Aircon systems, Oil cooler pipe, Refrigeration Parts |
| Length | Customers' Requirement, 1-12m, 6m, 3m, 1m |
| Grade | Cooper, C11000 C10200 C12000 C12200, TU2, TP1, C1100 |
| Type | Pancake Coil Copper Pipe, Straight Copper Pipe, Insulated copper pipe, straight and coil, copper tube/ copper pipe |
| Wall thickness | 0.2mm~12mm, 0.5mm-14mm, 0.8, 0.35-1.5mm, 0.4-3.0mm |
| Cu (min) | 99.99%, 99.97, According to the material |
| Outer diameter | 6mm-60 Mm, 1/4"-7/8", 2mm~914mm, DN10~DN900, 4.76-22 mm |
| Surface | Bright, Polished, PE coated, copper, Mill Surface |
| Thickness | 0.1 Mm - 300mm, 0.5mm-5mm, 8mm or as customer's wish, 0.2mm~21mm, 0.8-1 mm |
| Shape | Round, Round. Square. Rectangular, Flat, square, double coil |
| Standard | ASTM B280/EN 12735-1, ASTM B725, EN, ASTM JIS GB, ASTM B68 |
| Price term | CIF CFR FOB |
PRODUCT PARAMETERS
Chemical Composition & Mechanical Property
| Copper Alloy | Chemical Composition | Temper | Mechanical Property | |||
| Copper % | Phosphorus % | Tensile Strength MPa | Elongation % | Hardness HV | ||
| Cu-DHP | ≥ 99.90 | 0.015-0.040 | R220 | ≥ 220 | ≥ 40 | 40-70 |
| Cu-DHP | ≥ 99.90 | 0.015-0.040 | R250 | ≥ 250 | ≥ 30 | 75-100 |
| Cu-DHP | ≥ 99.90 | 0.015-0.040 | R290 | ≥ 290 | ≥ 3 | ≥ 100 |
Cleanness Requirement - Air Conditioner and Refrigeration Copper Tube
| Copper Alloy | Temper | Cleanness | Standard |
| Cu-DHP | R220 | ≤ 38mg/m² | EN 12735-1 |
| Cu-DHP | R2250 | ≤ 38mg/m² | EN 12735-1 |
| Cu-DHP | R290 | ≤ 38mg/m² | EN 12735-1 |

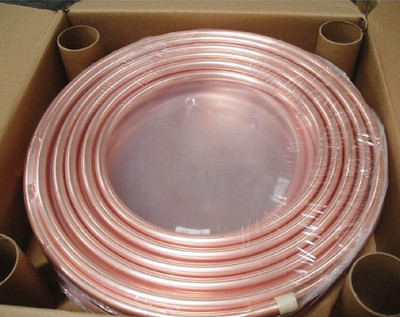

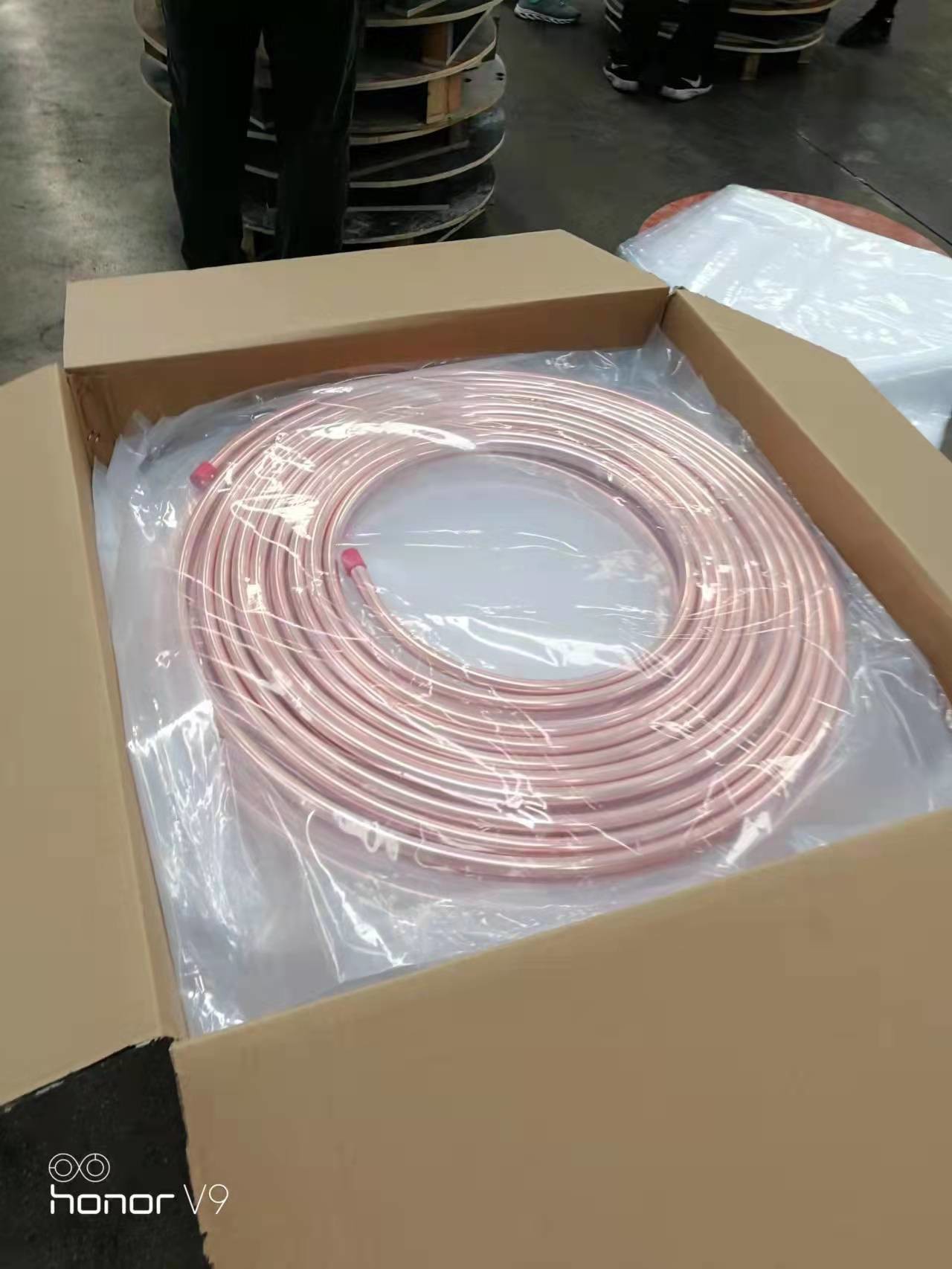

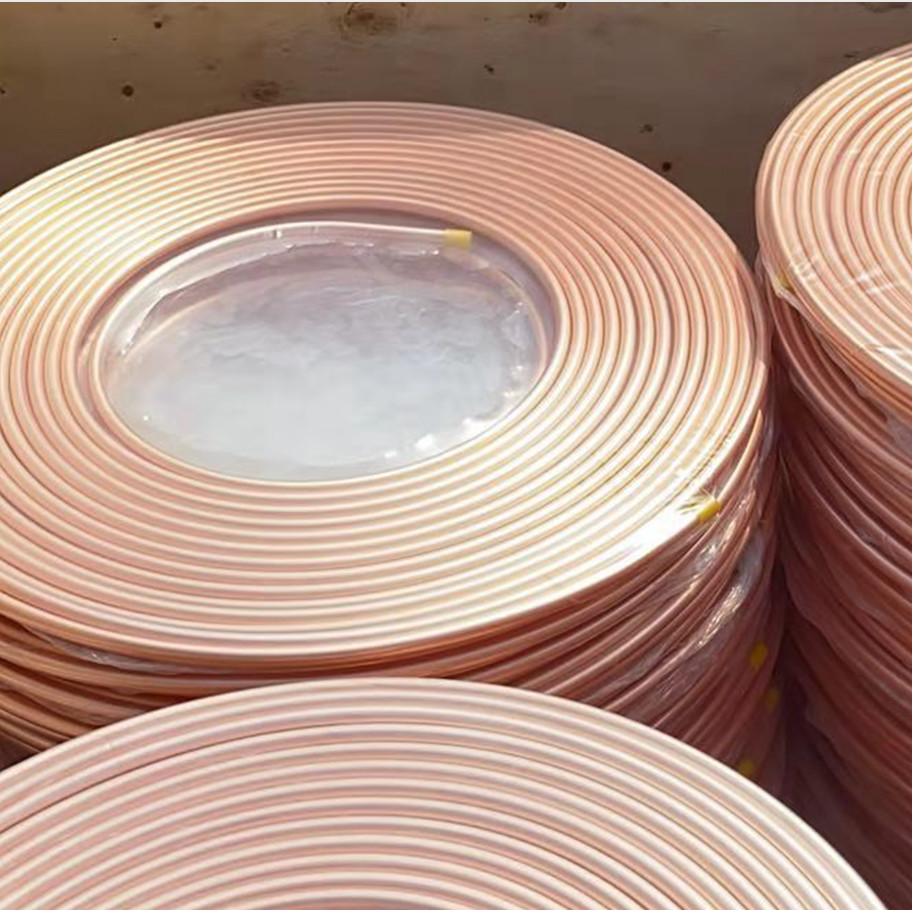

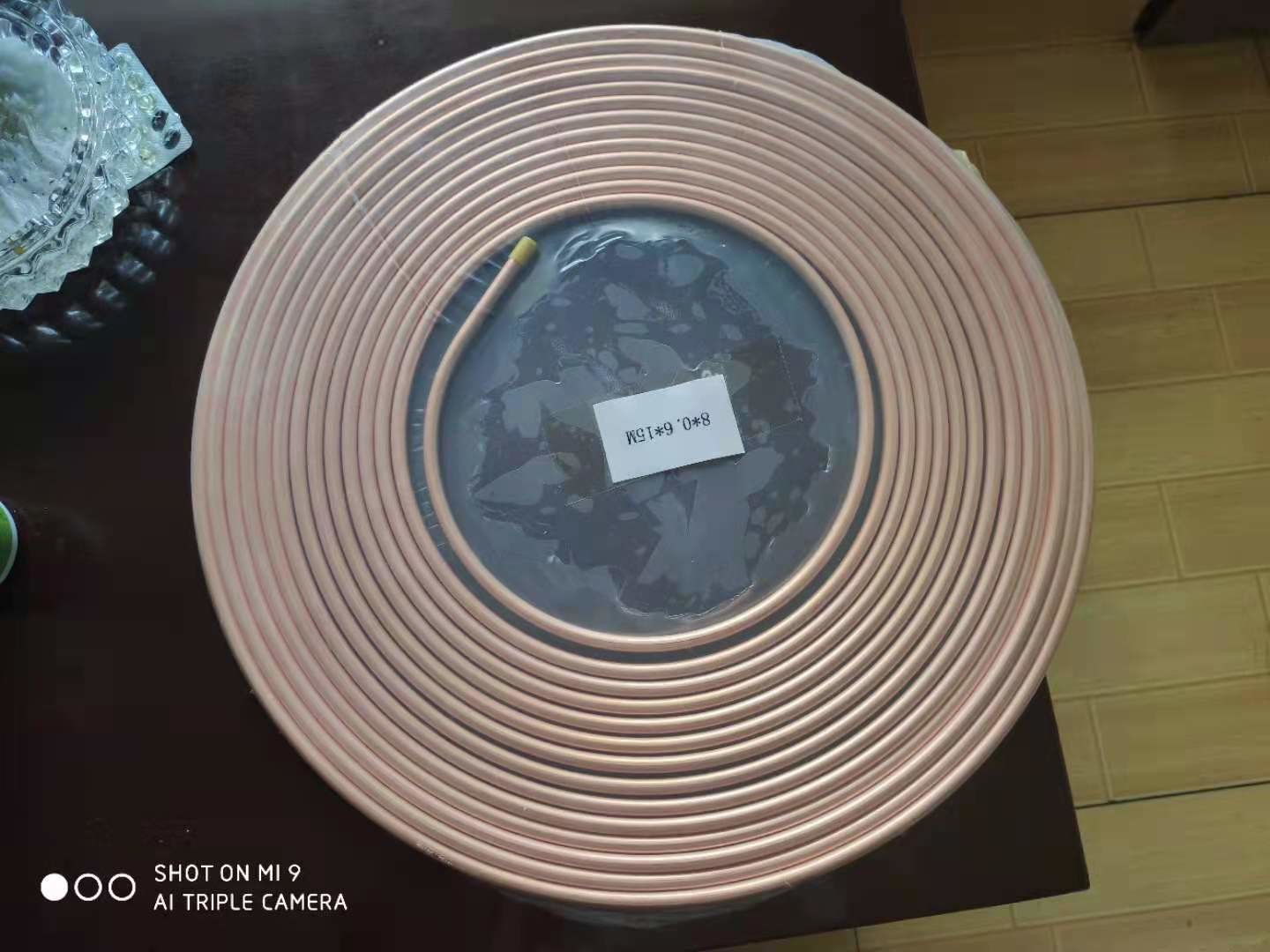

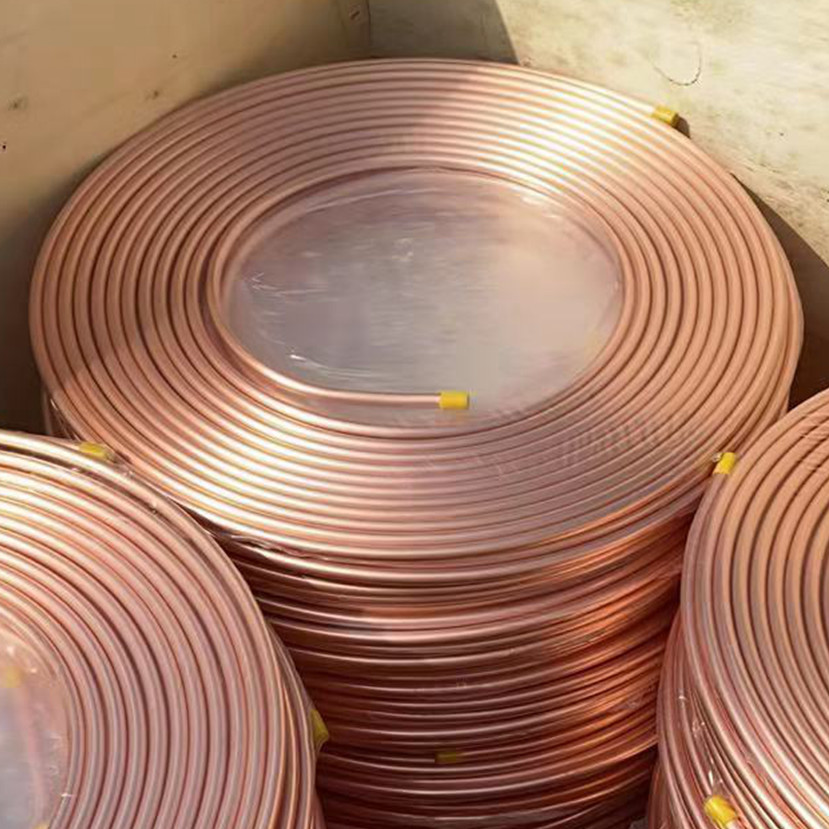

Product Photo

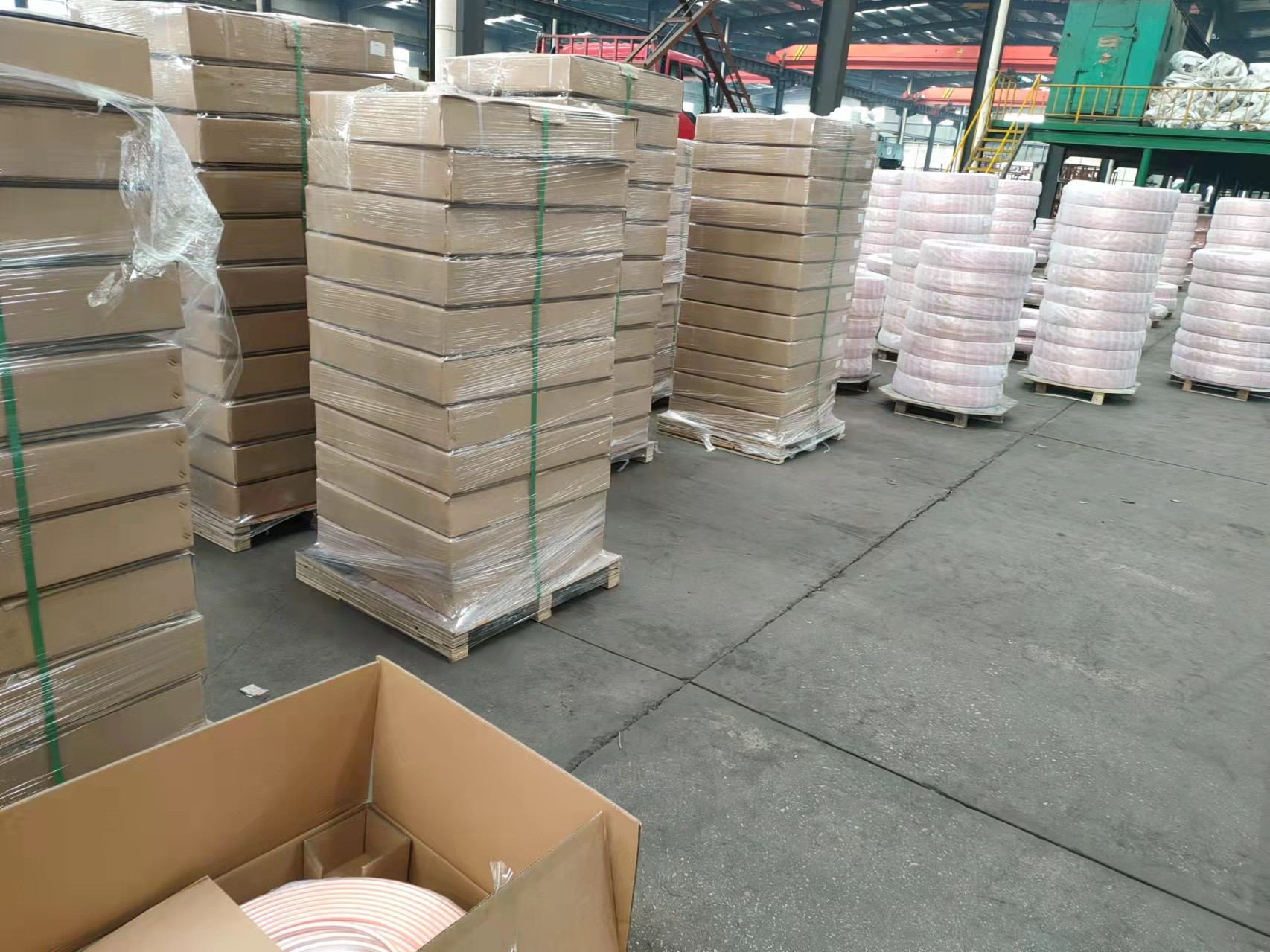

PACKING AND SHIPPING
- Plastic Bag Packing
- Carton Packing (with drier)
- Wooden Pallet
- Plastic Film Packing
