DIN2393 ST37 ERW Stainless Steel Cold Drawn Welded Tubes OD 6 To 2100mm

  • DIN2393 ST37 ERW Stainless Steel Cold Drawn Welded Tubes OD 6 To 2100mm
  • DIN2393 ST37 ERW Stainless Steel Cold Drawn Welded Tubes OD 6 To 2100mm
  • DIN2393 ST37 ERW Stainless Steel Cold Drawn Welded Tubes OD 6 To 2100mm
Place of Origin China
Brand Name TONGMAO
Certification ISO9001 MTC
Model Number steel pipe
Minimum Order Quantity 5tons
Price US $1,000-3,000/ Ton
Packaging Details Standard Packing
Delivery Time 7-15days
Payment Terms L/C, T/T
Supply Ability 1000tons/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Section Shape Round Length 6-12m
Thickness 0.1mm-150mm Model NO. DIN2393 ST37
Name Welded Steel Pipe Technique Welded And Seamless
Material Stainless Steel
Highlight

ST37 erw DIN2393 cold drawn welded tubes

,

DIN2393 ST37 erw stainless steel pipe

,

ST37 DIN2393 erw steel tube OD 2100mm
Leave a Message
Product Description

DIN2393 ST37 ERW Stainless Steel Cold Drawn Welded Tubes OD 6 To 2100mm

Small diameter stainless steel welded pipe is continuous online production, the thicker the wall thickness, the larger the investment of unit and melting equipment, the more it is not economical and practical. The thinner the wall thickness is, the input-output ratio will decrease correspondingly. Secondly, the process of the product determines its advantages and disadvantages. Generally, the welding steel pipe has high precision, uniform wall thickness, high brightness inside the pipe surface (the surface grade of the steel plate determines the surface brightness of the steel pipe), and can be arbitrarily fixed. Therefore, it embodies its economy and aesthetics in high precision, medium and low pressure fluid applications.

​Product Description​:

Grade Compositionnominal wt% Elongation % Hardness
301 Annealed 1/4H 1/2H FH C .15, Mn 2.0, P .045, S 0.3, Si .75, Cr 16-18, Ni 6-8, N .1 40 95 Rb
302 C 0.15, Mn 2.0, P .045, S .03, Si .75 Cr 17-19, Ni 8-10, N .1 40 92 Rb
303 C 0.15, Mn 2.0, P .045, S .03, Si .75 Cr 17-19, Ni 8-10, N .1 30-50 92 Rb
304 C .08, Mn 2.0, P .045, S .03, Si .75 Cr 18-20, Ni 8-10.5, N .10 40 92 Rb
304L C .03, Mn 2, P .045, S .03, Si .75, Cr 18-20, Ni 8-12, N .1 40 92 Rb
305 C .12, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 10.5-13, 40 88 Rb
309/309S Type 309 - C .2, Mn 2.0, P .045, S.03, Si .75 Cr 22-24, Ni 12-15, Fe bal Type 309S - C .08, Mn 2.0, P .045, S .03, Si. 75, Cr 22-24, Ni 12-15, Fe Bal 49/ 44.6 -
310L Mn 1.10, Cr 24.5, Ni 20.5 (nominal) 40 95 Rb
310 310S 310: C .25, Mn 2, P 0.045, S 0.03, Si 1.5, Cr 24-26, Ni 19-22, Fe balance 310S: C 0.08, Mn 2, P 0.045, S 0.30, Si 1.5, Cr 24-26, Ni 19-22, Fe balance 45/42/6 -
316 C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N .1, Fe Bal 40 95 Rb
316L C .03, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N 0.1, Fe Bal 54 95 Rb
316Ti C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P 0.045, S 0.03, N 0.1, Ti 0.15-0.70, balance Fe 248 76 Rb
317 Type 317 - C .08, Mn 2.0, Si .75, Cr 18-20, Ni 11-15, Mo 3-4, P .045, S .03, N .10, Fe Bal 35 95 Rb



Wall Thickness 2-5.4mm/Can be customized
Brand TONGMAO
Length 6m or as Your Requirements
Payment T/T,L/C,Western Union,Moneygram
Transport Package Standard Export Packaging
Origin Liaocheng China
Shipment port Qingdao
Outer Diameter DN15-DN150
Standard GB/T,ASTM, JIS
Date of Delivery 7-15 Days After Receiving Your Dosit
Specification Q195, Q235, Q345

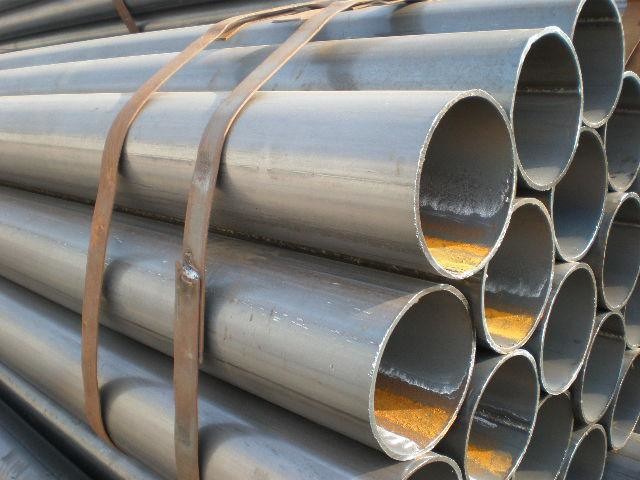

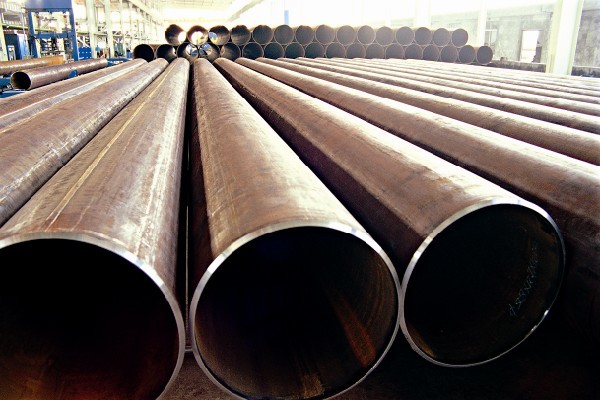

 Pictures show:



DIN2393 ST37 ERW Stainless Steel Cold Drawn Welded Tubes OD 6 To 2100mm 0
FAQ

Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.
Will you delivery the goods on time?
Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not.Honesty is our company's tenet.
How can I get a quotation from you ?
You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.
And you can also find our contact information on contact page.
How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them
